1. Material Principles and Crystallographic Residence
1.1 Stage Structure and Polymorphic Habits

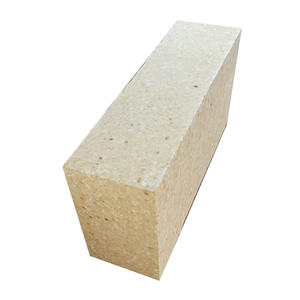

(Alumina Ceramic Blocks)
Alumina (Al ₂ O SIX), specifically in its α-phase kind, is among one of the most commonly used technological ceramics due to its superb balance of mechanical toughness, chemical inertness, and thermal stability.
While aluminum oxide exists in several metastable phases (γ, δ, θ, κ), α-alumina is the thermodynamically stable crystalline structure at high temperatures, characterized by a dense hexagonal close-packed (HCP) arrangement of oxygen ions with aluminum cations occupying two-thirds of the octahedral interstitial sites.
This bought structure, called corundum, confers high latticework energy and strong ionic-covalent bonding, leading to a melting factor of around 2054 ° C and resistance to stage change under extreme thermal conditions.
The shift from transitional aluminas to α-Al two O six generally happens over 1100 ° C and is accompanied by considerable quantity shrinking and loss of area, making phase control crucial throughout sintering.
High-purity α-alumina blocks (> 99.5% Al ₂ O SIX) show premium efficiency in serious settings, while lower-grade structures (90– 95%) might include secondary stages such as mullite or glassy grain border phases for cost-efficient applications.
1.2 Microstructure and Mechanical Stability
The performance of alumina ceramic blocks is profoundly influenced by microstructural features consisting of grain dimension, porosity, and grain boundary cohesion.
Fine-grained microstructures (grain size < 5 µm) normally give greater flexural strength (up to 400 MPa) and enhanced fracture strength contrasted to grainy equivalents, as smaller sized grains restrain crack proliferation.
Porosity, even at reduced degrees (1– 5%), dramatically lowers mechanical toughness and thermal conductivity, demanding complete densification via pressure-assisted sintering approaches such as hot pressing or hot isostatic pushing (HIP).
Additives like MgO are typically presented in trace quantities (≈ 0.1 wt%) to hinder unusual grain development throughout sintering, making certain consistent microstructure and dimensional stability.
The resulting ceramic blocks display high hardness (≈ 1800 HV), exceptional wear resistance, and low creep rates at elevated temperatures, making them ideal for load-bearing and abrasive environments.
2. Manufacturing and Handling Techniques
( Alumina Ceramic Blocks)
2.1 Powder Preparation and Shaping Approaches
The manufacturing of alumina ceramic blocks starts with high-purity alumina powders stemmed from calcined bauxite using the Bayer process or manufactured via precipitation or sol-gel courses for higher pureness.
Powders are grated to attain narrow fragment dimension circulation, boosting packing density and sinterability.
Shaping into near-net geometries is accomplished with various forming methods: uniaxial pressing for basic blocks, isostatic pushing for consistent density in complex forms, extrusion for long sections, and slide casting for detailed or big elements.
Each technique influences eco-friendly body density and homogeneity, which directly effect final buildings after sintering.
For high-performance applications, advanced creating such as tape casting or gel-casting may be utilized to attain superior dimensional control and microstructural uniformity.
2.2 Sintering and Post-Processing
Sintering in air at temperature levels in between 1600 ° C and 1750 ° C allows diffusion-driven densification, where bit necks expand and pores shrink, bring about a completely thick ceramic body.
Atmosphere control and accurate thermal accounts are important to protect against bloating, bending, or differential contraction.
Post-sintering procedures include ruby grinding, washing, and polishing to accomplish limited tolerances and smooth surface finishes needed in sealing, moving, or optical applications.
Laser cutting and waterjet machining enable exact customization of block geometry without causing thermal tension.
Surface therapies such as alumina layer or plasma spraying can better improve wear or rust resistance in customized service conditions.
3. Useful Residences and Efficiency Metrics
3.1 Thermal and Electric Actions
Alumina ceramic blocks display moderate thermal conductivity (20– 35 W/(m · K)), substantially more than polymers and glasses, allowing effective heat dissipation in electronic and thermal monitoring systems.
They preserve structural integrity as much as 1600 ° C in oxidizing atmospheres, with low thermal growth (≈ 8 ppm/K), contributing to excellent thermal shock resistance when effectively designed.
Their high electrical resistivity (> 10 ¹⁴ Ω · cm) and dielectric strength (> 15 kV/mm) make them optimal electrical insulators in high-voltage settings, including power transmission, switchgear, and vacuum cleaner systems.
Dielectric continuous (εᵣ ≈ 9– 10) remains stable over a broad frequency range, sustaining usage in RF and microwave applications.
These homes enable alumina blocks to function dependably in atmospheres where natural materials would break down or fall short.
3.2 Chemical and Ecological Toughness
One of the most beneficial attributes of alumina blocks is their phenomenal resistance to chemical attack.
They are extremely inert to acids (other than hydrofluoric and hot phosphoric acids), antacid (with some solubility in strong caustics at elevated temperature levels), and molten salts, making them ideal for chemical processing, semiconductor construction, and pollution control tools.
Their non-wetting habits with numerous molten metals and slags permits use in crucibles, thermocouple sheaths, and heater cellular linings.
Furthermore, alumina is safe, biocompatible, and radiation-resistant, expanding its utility into medical implants, nuclear protecting, and aerospace elements.
Marginal outgassing in vacuum settings even more qualifies it for ultra-high vacuum cleaner (UHV) systems in study and semiconductor production.
4. Industrial Applications and Technological Integration
4.1 Architectural and Wear-Resistant Parts
Alumina ceramic blocks serve as crucial wear parts in markets ranging from mining to paper manufacturing.
They are utilized as liners in chutes, hoppers, and cyclones to withstand abrasion from slurries, powders, and granular materials, significantly extending life span contrasted to steel.
In mechanical seals and bearings, alumina blocks provide low rubbing, high solidity, and deterioration resistance, lowering upkeep and downtime.
Custom-shaped blocks are incorporated right into reducing devices, dies, and nozzles where dimensional security and side retention are critical.
Their lightweight nature (density ≈ 3.9 g/cm FIVE) additionally contributes to power cost savings in relocating parts.
4.2 Advanced Engineering and Emerging Makes Use Of
Past traditional functions, alumina blocks are increasingly employed in advanced technological systems.
In electronic devices, they work as insulating substratums, warmth sinks, and laser dental caries parts because of their thermal and dielectric residential properties.
In energy systems, they act as strong oxide gas cell (SOFC) elements, battery separators, and combination reactor plasma-facing materials.
Additive production of alumina by means of binder jetting or stereolithography is emerging, making it possible for complicated geometries formerly unattainable with standard developing.
Crossbreed structures combining alumina with metals or polymers through brazing or co-firing are being created for multifunctional systems in aerospace and protection.
As product science breakthroughs, alumina ceramic blocks remain to develop from easy architectural elements right into active components in high-performance, lasting engineering services.
In summary, alumina ceramic blocks represent a fundamental course of innovative porcelains, combining robust mechanical efficiency with extraordinary chemical and thermal security.
Their flexibility across commercial, digital, and clinical domain names emphasizes their long-lasting value in modern-day engineering and technology development.
