1. Composition and Structural Features of Fused Quartz
1.1 Amorphous Network and Thermal Stability

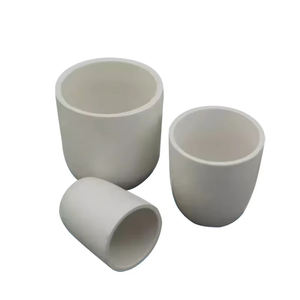

(Quartz Crucibles)
Quartz crucibles are high-temperature containers manufactured from fused silica, a synthetic form of silicon dioxide (SiO TWO) derived from the melting of all-natural quartz crystals at temperatures surpassing 1700 ° C.
Unlike crystalline quartz, integrated silica possesses an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which imparts exceptional thermal shock resistance and dimensional stability under rapid temperature modifications.
This disordered atomic structure protects against cleavage along crystallographic planes, making fused silica less susceptible to cracking throughout thermal biking compared to polycrystalline porcelains.
The material shows a low coefficient of thermal growth (~ 0.5 × 10 ⁻⁶/ K), one of the lowest amongst engineering products, enabling it to withstand severe thermal gradients without fracturing– a vital residential property in semiconductor and solar battery production.
Integrated silica likewise keeps excellent chemical inertness against many acids, molten steels, and slags, although it can be slowly etched by hydrofluoric acid and warm phosphoric acid.
Its high softening point (~ 1600– 1730 ° C, relying on pureness and OH material) allows sustained procedure at raised temperature levels needed for crystal development and steel refining procedures.
1.2 Purity Grading and Micronutrient Control
The performance of quartz crucibles is extremely depending on chemical purity, especially the focus of metal pollutants such as iron, sodium, potassium, light weight aluminum, and titanium.
Also trace amounts (parts per million level) of these pollutants can migrate right into liquified silicon throughout crystal development, degrading the electrical residential or commercial properties of the resulting semiconductor material.
High-purity qualities utilized in electronic devices making typically have over 99.95% SiO ₂, with alkali metal oxides restricted to much less than 10 ppm and transition metals below 1 ppm.
Impurities stem from raw quartz feedstock or handling tools and are reduced with mindful option of mineral sources and filtration methods like acid leaching and flotation.
Furthermore, the hydroxyl (OH) web content in fused silica influences its thermomechanical behavior; high-OH kinds offer much better UV transmission but lower thermal security, while low-OH variants are preferred for high-temperature applications as a result of lowered bubble formation.

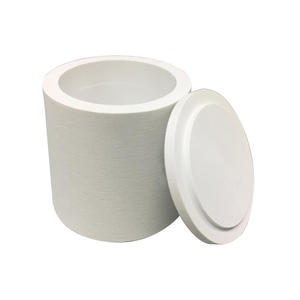

( Quartz Crucibles)
2. Production Process and Microstructural Design
2.1 Electrofusion and Creating Strategies
Quartz crucibles are primarily generated by means of electrofusion, a procedure in which high-purity quartz powder is fed right into a revolving graphite mold and mildew within an electric arc heater.
An electric arc generated between carbon electrodes melts the quartz bits, which strengthen layer by layer to develop a seamless, thick crucible form.
This method creates a fine-grained, homogeneous microstructure with minimal bubbles and striae, necessary for uniform warm circulation and mechanical honesty.
Alternative techniques such as plasma combination and fire fusion are utilized for specialized applications needing ultra-low contamination or specific wall thickness accounts.
After casting, the crucibles undertake controlled air conditioning (annealing) to relieve inner tensions and protect against spontaneous breaking during service.
Surface ending up, consisting of grinding and brightening, makes sure dimensional precision and minimizes nucleation websites for unwanted condensation throughout usage.
2.2 Crystalline Layer Engineering and Opacity Control
A defining feature of contemporary quartz crucibles, specifically those utilized in directional solidification of multicrystalline silicon, is the engineered internal layer framework.
Throughout production, the internal surface is typically treated to promote the formation of a thin, regulated layer of cristobalite– a high-temperature polymorph of SiO TWO– upon initial home heating.
This cristobalite layer works as a diffusion barrier, reducing direct communication in between liquified silicon and the underlying fused silica, therefore reducing oxygen and metal contamination.
Furthermore, the presence of this crystalline phase enhances opacity, improving infrared radiation absorption and promoting more uniform temperature distribution within the melt.
Crucible designers carefully balance the thickness and continuity of this layer to stay clear of spalling or breaking because of volume changes throughout phase transitions.
3. Functional Performance in High-Temperature Applications
3.1 Role in Silicon Crystal Growth Processes
Quartz crucibles are important in the production of monocrystalline and multicrystalline silicon, functioning as the main container for molten silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ process, a seed crystal is dipped right into liquified silicon held in a quartz crucible and slowly pulled upwards while revolving, permitting single-crystal ingots to form.
Although the crucible does not directly call the expanding crystal, interactions in between liquified silicon and SiO two walls lead to oxygen dissolution into the melt, which can impact carrier life time and mechanical strength in ended up wafers.
In DS procedures for photovoltaic-grade silicon, massive quartz crucibles allow the controlled air conditioning of thousands of kilograms of liquified silicon into block-shaped ingots.
Here, coatings such as silicon nitride (Si two N ₄) are applied to the inner surface to prevent adhesion and help with simple release of the solidified silicon block after cooling.
3.2 Deterioration Systems and Service Life Limitations
Despite their robustness, quartz crucibles degrade throughout duplicated high-temperature cycles because of numerous interrelated devices.
Viscous circulation or contortion occurs at long term exposure over 1400 ° C, causing wall thinning and loss of geometric honesty.
Re-crystallization of fused silica into cristobalite creates inner stress and anxieties as a result of quantity expansion, potentially causing cracks or spallation that infect the thaw.
Chemical disintegration emerges from reduction reactions in between liquified silicon and SiO ₂: SiO ₂ + Si → 2SiO(g), generating unpredictable silicon monoxide that gets away and damages the crucible wall.
Bubble formation, driven by entraped gases or OH groups, better compromises architectural strength and thermal conductivity.
These deterioration paths restrict the variety of reuse cycles and require accurate procedure control to take full advantage of crucible life expectancy and item yield.
4. Emerging Developments and Technical Adaptations
4.1 Coatings and Composite Adjustments
To improve performance and longevity, progressed quartz crucibles incorporate practical coatings and composite frameworks.
Silicon-based anti-sticking layers and doped silica coverings boost launch qualities and decrease oxygen outgassing during melting.
Some makers incorporate zirconia (ZrO TWO) bits right into the crucible wall to increase mechanical strength and resistance to devitrification.
Research study is recurring right into totally transparent or gradient-structured crucibles made to optimize convected heat transfer in next-generation solar heating system layouts.
4.2 Sustainability and Recycling Obstacles
With increasing demand from the semiconductor and photovoltaic industries, lasting use quartz crucibles has actually become a top priority.
Spent crucibles infected with silicon residue are hard to reuse as a result of cross-contamination dangers, resulting in substantial waste generation.
Initiatives focus on establishing reusable crucible liners, enhanced cleansing methods, and closed-loop recycling systems to recover high-purity silica for secondary applications.
As device effectiveness require ever-higher material purity, the duty of quartz crucibles will continue to advance via advancement in products science and procedure engineering.
In recap, quartz crucibles represent an important user interface in between resources and high-performance digital items.
Their special combination of purity, thermal resilience, and architectural style makes it possible for the construction of silicon-based modern technologies that power modern-day computer and renewable energy systems.
