1. Material Science and Structural Feature
1.1 Crystal Framework and Chemical Stability

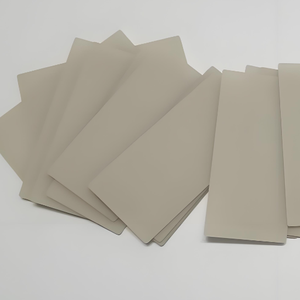

(Aluminum Nitride Ceramic Substrates)
Aluminum nitride (AlN) is a large bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, made up of alternating layers of aluminum and nitrogen atoms adhered via solid covalent communications.
This robust atomic plan enhances AlN with remarkable thermal stability, keeping architectural stability approximately 2200 ° C in inert environments and standing up to decay under extreme thermal cycling.
Unlike alumina (Al ₂ O ₃), AlN is chemically inert to thaw steels and numerous responsive gases, making it ideal for harsh atmospheres such as semiconductor handling chambers and high-temperature heaters.
Its high resistance to oxidation– forming just a slim safety Al two O three layer at surface upon direct exposure to air– guarantees lasting reliability without significant degradation of mass homes.
Furthermore, AlN exhibits superb electrical insulation with a resistivity surpassing 10 ¹⁴ Ω · cm and a dielectric stamina over 30 kV/mm, essential for high-voltage applications.
1.2 Thermal Conductivity and Digital Qualities
One of the most specifying attribute of light weight aluminum nitride is its superior thermal conductivity, commonly ranging from 140 to 180 W/(m · K )for commercial-grade substratums– over five times greater than that of alumina (≈ 30 W/(m · K)).
This performance originates from the low atomic mass of nitrogen and light weight aluminum, incorporated with solid bonding and marginal point issues, which allow effective phonon transportation with the lattice.
However, oxygen impurities are specifically destructive; even trace amounts (over 100 ppm) substitute for nitrogen websites, producing light weight aluminum jobs and spreading phonons, thereby considerably minimizing thermal conductivity.
High-purity AlN powders manufactured through carbothermal reduction or straight nitridation are vital to accomplish optimum warm dissipation.
Regardless of being an electric insulator, AlN’s piezoelectric and pyroelectric residential or commercial properties make it beneficial in sensors and acoustic wave tools, while its wide bandgap (~ 6.2 eV) sustains procedure in high-power and high-frequency digital systems.
2. Manufacture Processes and Manufacturing Challenges

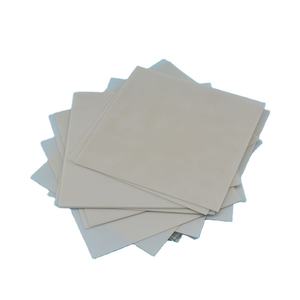

( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Methods
Making high-performance AlN substrates begins with the synthesis of ultra-fine, high-purity powder, typically attained with responses such as Al Two O SIX + 3C + N ₂ → 2AlN + 3CO (carbothermal decrease) or direct nitridation of aluminum metal: 2Al + N TWO → 2AlN.
The resulting powder needs to be thoroughly milled and doped with sintering help like Y TWO O TWO, CaO, or unusual planet oxides to advertise densification at temperatures between 1700 ° C and 1900 ° C under nitrogen atmosphere.
These additives create short-term liquid phases that enhance grain boundary diffusion, making it possible for full densification (> 99% theoretical density) while decreasing oxygen contamination.
Post-sintering annealing in carbon-rich atmospheres can additionally minimize oxygen material by removing intergranular oxides, therefore bring back peak thermal conductivity.
Achieving uniform microstructure with controlled grain dimension is important to stabilize mechanical stamina, thermal performance, and manufacturability.
2.2 Substratum Shaping and Metallization
As soon as sintered, AlN porcelains are precision-ground and lapped to fulfill tight dimensional tolerances required for electronic product packaging, frequently to micrometer-level flatness.
Through-hole boring, laser cutting, and surface area patterning enable integration right into multilayer packages and crossbreed circuits.
A vital step in substrate construction is metallization– the application of conductive layers (normally tungsten, molybdenum, or copper) via procedures such as thick-film printing, thin-film sputtering, or direct bonding of copper (DBC).
For DBC, copper aluminum foils are bound to AlN surface areas at raised temperatures in a regulated environment, forming a solid interface ideal for high-current applications.
Alternative techniques like energetic metal brazing (AMB) use titanium-containing solders to boost bond and thermal exhaustion resistance, specifically under repeated power cycling.
Appropriate interfacial design guarantees reduced thermal resistance and high mechanical dependability in operating devices.
3. Performance Advantages in Electronic Systems
3.1 Thermal Administration in Power Electronics
AlN substratums excel in managing warm generated by high-power semiconductor gadgets such as IGBTs, MOSFETs, and RF amplifiers made use of in electrical cars, renewable energy inverters, and telecoms facilities.
Efficient heat extraction avoids local hotspots, lowers thermal stress and anxiety, and prolongs tool life time by reducing electromigration and delamination threats.
Compared to typical Al ₂ O five substrates, AlN makes it possible for smaller plan sizes and higher power densities because of its exceptional thermal conductivity, allowing developers to push performance limits without compromising integrity.
In LED lights and laser diodes, where joint temperature level directly affects effectiveness and shade security, AlN substrates substantially boost luminous result and operational life expectancy.
Its coefficient of thermal growth (CTE ≈ 4.5 ppm/K) likewise closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), reducing thermo-mechanical anxiety during thermal cycling.
3.2 Electrical and Mechanical Reliability
Beyond thermal performance, AlN uses low dielectric loss (tan δ < 0.0005) and stable permittivity (εᵣ ≈ 8.9) throughout a wide regularity range, making it suitable for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature protects against dampness access, removing rust threats in moist atmospheres– an essential advantage over organic substratums.
Mechanically, AlN possesses high flexural toughness (300– 400 MPa) and firmness (HV ≈ 1200), ensuring resilience throughout handling, setting up, and field operation.
These characteristics collectively contribute to enhanced system dependability, reduced failing prices, and lower complete price of ownership in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Protection Solutions
AlN ceramic substratums are currently conventional in innovative power components for industrial motor drives, wind and solar inverters, and onboard chargers in electrical and hybrid cars.
In aerospace and protection, they support radar systems, digital warfare units, and satellite communications, where efficiency under extreme conditions is non-negotiable.
Medical imaging tools, including X-ray generators and MRI systems, also benefit from AlN’s radiation resistance and signal honesty.
As electrification patterns accelerate across transportation and energy fields, need for AlN substratums remains to expand, driven by the demand for compact, effective, and trustworthy power electronic devices.
4.2 Arising Assimilation and Lasting Development
Future developments concentrate on incorporating AlN into three-dimensional packaging designs, embedded passive elements, and heterogeneous combination systems combining Si, SiC, and GaN devices.
Study into nanostructured AlN movies and single-crystal substrates intends to additional boost thermal conductivity toward academic limitations (> 300 W/(m · K)) for next-generation quantum and optoelectronic gadgets.
Initiatives to minimize manufacturing prices through scalable powder synthesis, additive manufacturing of intricate ceramic structures, and recycling of scrap AlN are acquiring momentum to boost sustainability.
Furthermore, modeling tools making use of finite component evaluation (FEA) and machine learning are being used to optimize substrate layout for specific thermal and electric tons.
In conclusion, light weight aluminum nitride ceramic substrates represent a cornerstone innovation in contemporary electronic devices, uniquely linking the space in between electrical insulation and extraordinary thermal conduction.
Their role in making it possible for high-efficiency, high-reliability power systems emphasizes their tactical importance in the ongoing development of digital and power technologies.
