1. Chemical Framework and Molecular Device
1.1 Synthesis and Molecular Style

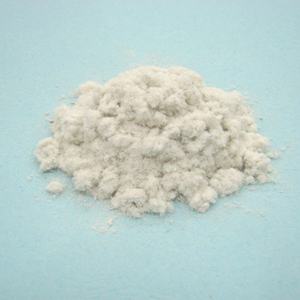

(Naphthalene Sulfonate Superplasticizer)
Naphthalene sulfonate formaldehyde condensate (NSF), commonly referred to as naphthalene sulfonate superplasticizer, is a synthetic water-reducing admixture commonly made use of in high-performance concrete to improve flowability without compromising structural stability.
It is generated via a multi-step chemical process entailing the sulfonation of naphthalene with focused sulfuric acid to create naphthalene sulfonic acid, adhered to by formaldehyde condensation under controlled temperature level and pH problems to develop a polymer with repeating aromatic units connected by methylene bridges.
The resulting molecule includes a hydrophobic naphthalene foundation and several hydrophilic sulfonate (-SO SIX ⁻) teams, creating a comb-like polyelectrolyte framework that enables strong communication with concrete fragments in liquid atmospheres.
This amphiphilic style is main to its distributing feature, enabling the polymer to adsorb onto the surface area of cement hydrates and present electrostatic repulsion between fragments.
The degree of sulfonation and polymerization can be adjusted throughout synthesis to customize the molecular weight and cost thickness, straight influencing dispersion effectiveness and compatibility with different concrete types.
1.2 Dispersion Device in Cementitious Systems
When contributed to fresh concrete, NSF features mostly with electrostatic repulsion, a system unique from steric hindrance used by newer polycarboxylate-based superplasticizers.
Upon mixing, the hydrophobic naphthalene rings adsorb onto the favorably charged sites of tricalcium silicate (C FOUR S) and various other cement stages, while the adversely charged sulfonate teams prolong right into the pore service, creating a solid unfavorable surface area possibility.
This creates an electrical dual layer around each cement particle, causing them to drive away one another and neutralizing the natural tendency of great fragments to flocculate due to van der Waals pressures.
Therefore, the entrapped water within flocs is launched, raising the fluidity of the mix and allowing substantial decreases in water web content– normally 15– 25%– while keeping workability.
This improved diffusion causes a much more homogeneous microstructure, minimized porosity, and improved mechanical stamina advancement with time.
Nevertheless, the effectiveness of NSF reduces with extended blending or high temperatures as a result of desorption and depression loss, a limitation that influences its application in long-haul transport or hot environments.

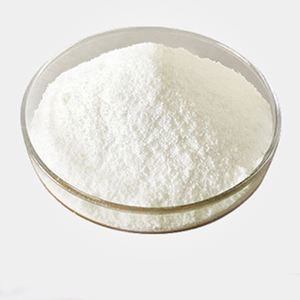

( Naphthalene Sulfonate Superplasticizer)
2. Performance Characteristics and Design Advantages
2.1 Workability and Circulation Improvement
Among the most immediate benefits of naphthalene sulfonate superplasticizer is its ability to substantially enhance the slump of concrete, making it very flowable and very easy to location, pump, and settle, specifically in largely strengthened structures.
This boosted workability allows for the building and construction of intricate building forms and minimizes the need for mechanical vibration, reducing labor expenses and the threat of honeycombing or spaces.
NSF is specifically effective in creating self-consolidating concrete (SCC) when made use of in mix with viscosity-modifying agents and various other admixtures, ensuring full mold loading without partition.
The level of fluidity gain depends on dosage, generally ranging from 0.5% to 2.0% by weight of cement, past which reducing returns or perhaps retardation might happen.
Unlike some organic plasticizers, NSF does not introduce extreme air entrainment, protecting the thickness and durability of the end product.
2.2 Stamina and Durability Improvements
By making it possible for lower water-to-cement (w/c) ratios, NSF plays an important role in improving both early and lasting compressive and flexural strength of concrete.
A reduced w/c ratio lowers capillary porosity, bring about a denser, much less permeable matrix that resists the ingress of chlorides, sulfates, and moisture– crucial factors in stopping support rust and sulfate strike.
This improved impermeability prolongs service life in aggressive environments such as aquatic structures, bridges, and wastewater treatment facilities.
In addition, the consistent diffusion of concrete fragments advertises more complete hydration, speeding up stamina gain and minimizing contraction breaking dangers.
Researches have actually shown that concrete incorporating NSF can attain 20– 40% greater compressive strength at 28 days compared to regulate blends, depending on mix style and healing conditions.
3. Compatibility and Application Considerations
3.1 Communication with Cement and Supplementary Products
The performance of naphthalene sulfonate superplasticizer can differ considerably depending on the structure of the concrete, especially the C FIVE A (tricalcium aluminate) content and alkali degrees.
Concretes with high C ₃ A tend to adsorb more NSF due to more powerful electrostatic communications, possibly requiring higher dosages to accomplish the desired fluidity.
Similarly, the existence of supplementary cementitious products (SCMs) such as fly ash, slag, or silica fume affects adsorption kinetics and rheological behavior; as an example, fly ash can contend for adsorption websites, altering the reliable dose.
Blending NSF with other admixtures like retarders, accelerators, or air-entraining agents needs mindful compatibility screening to avoid damaging communications such as rapid downturn loss or flash collection.
Batching series– whether NSF is included previously, throughout, or after blending– likewise influences diffusion performance and should be standard in large-scale operations.
3.2 Environmental and Handling Aspects
NSF is offered in fluid and powder kinds, with fluid formulations providing easier application and faster dissolution in mixing water.
While usually stable under typical storage space conditions, long term exposure to freezing temperature levels can trigger rainfall, and high warmth might deteriorate the polymer chains over time.
From an environmental viewpoint, NSF is taken into consideration reduced poisoning and non-corrosive, though correct handling methods must be followed to avoid inhalation of powder or skin irritation.
Its manufacturing includes petrochemical by-products and formaldehyde, raising sustainability concerns that have actually driven research into bio-based choices and greener synthesis routes.
4. Industrial Applications and Future Overview
4.1 Use in Precast, Ready-Mix, and High-Strength Concrete
Naphthalene sulfonate superplasticizer is thoroughly used in precast concrete manufacturing, where accurate control over setting time, surface area finish, and dimensional accuracy is important.
In ready-mixed concrete, it makes it possible for long-distance transport without giving up workability upon arrival at building websites.
It is likewise an essential part in high-strength concrete (HSC) and ultra-high-performance concrete (UHPC), where exceptionally low w/c proportions are needed to accomplish compressive toughness surpassing 100 MPa.
Passage cellular linings, skyscrapers, and prestressed concrete elements benefit from the improved durability and structural effectiveness provided by NSF-modified blends.
4.2 Trends and Challenges in Admixture Modern Technology
Regardless of the emergence of more advanced polycarboxylate ether (PCE) superplasticizers with remarkable downturn retention and reduced dose needs, NSF stays extensively made use of due to its cost-effectiveness and tried and tested efficiency.
Continuous research study concentrates on crossbreed systems incorporating NSF with PCEs or nanomaterials to optimize rheology and stamina development.
Efforts to enhance biodegradability, lower formaldehyde discharges throughout manufacturing, and boost compatibility with low-carbon cements mirror the sector’s change towards lasting construction materials.
Finally, naphthalene sulfonate superplasticizer represents a keystone modern technology in modern concrete engineering, bridging the void in between standard techniques and progressed product efficiency.
Its capability to change concrete into a very convenient yet resilient composite continues to sustain worldwide facilities growth, even as next-generation admixtures evolve.
