1. Fundamental Structure and Architectural Architecture of Quartz Ceramics
1.1 Crystalline vs. Fused Silica: Specifying the Material Class

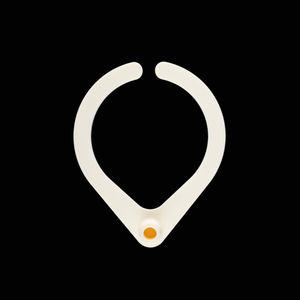

(Transparent Ceramics)
Quartz porcelains, additionally referred to as merged quartz or fused silica ceramics, are innovative not natural products stemmed from high-purity crystalline quartz (SiO TWO) that go through controlled melting and combination to form a thick, non-crystalline (amorphous) or partially crystalline ceramic framework.
Unlike conventional ceramics such as alumina or zirconia, which are polycrystalline and made up of several stages, quartz porcelains are mainly composed of silicon dioxide in a network of tetrahedrally worked with SiO ₄ systems, supplying outstanding chemical pureness– commonly exceeding 99.9% SiO ₂.
The distinction in between merged quartz and quartz porcelains lies in processing: while integrated quartz is typically a completely amorphous glass formed by rapid air conditioning of liquified silica, quartz ceramics may include regulated crystallization (devitrification) or sintering of fine quartz powders to achieve a fine-grained polycrystalline or glass-ceramic microstructure with boosted mechanical robustness.
This hybrid technique incorporates the thermal and chemical security of integrated silica with improved fracture strength and dimensional stability under mechanical tons.
1.2 Thermal and Chemical Security Devices
The extraordinary performance of quartz ceramics in severe atmospheres comes from the strong covalent Si– O bonds that develop a three-dimensional connect with high bond energy (~ 452 kJ/mol), providing exceptional resistance to thermal deterioration and chemical assault.
These materials show an incredibly low coefficient of thermal development– roughly 0.55 × 10 ⁻⁶/ K over the array 20– 300 ° C– making them very resistant to thermal shock, an important feature in applications involving quick temperature biking.
They preserve architectural integrity from cryogenic temperatures up to 1200 ° C in air, and also higher in inert atmospheres, prior to softening starts around 1600 ° C.
Quartz porcelains are inert to the majority of acids, including hydrochloric, nitric, and sulfuric acids, as a result of the security of the SiO ₂ network, although they are susceptible to strike by hydrofluoric acid and solid alkalis at elevated temperatures.
This chemical durability, incorporated with high electrical resistivity and ultraviolet (UV) openness, makes them optimal for usage in semiconductor handling, high-temperature furnaces, and optical systems exposed to extreme conditions.
2. Manufacturing Processes and Microstructural Control

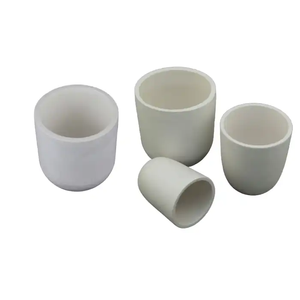

( Transparent Ceramics)
2.1 Melting, Sintering, and Devitrification Pathways
The production of quartz ceramics entails sophisticated thermal handling techniques designed to preserve pureness while achieving preferred density and microstructure.
One common technique is electric arc melting of high-purity quartz sand, followed by controlled cooling to develop fused quartz ingots, which can after that be machined right into components.
For sintered quartz ceramics, submicron quartz powders are compressed through isostatic pushing and sintered at temperatures between 1100 ° C and 1400 ° C, frequently with minimal ingredients to advertise densification without generating extreme grain development or stage makeover.
An essential obstacle in handling is avoiding devitrification– the spontaneous formation of metastable silica glass right into cristobalite or tridymite phases– which can endanger thermal shock resistance due to quantity adjustments throughout phase transitions.
Makers utilize precise temperature control, quick air conditioning cycles, and dopants such as boron or titanium to suppress unwanted crystallization and preserve a steady amorphous or fine-grained microstructure.
2.2 Additive Production and Near-Net-Shape Fabrication
Current breakthroughs in ceramic additive manufacturing (AM), especially stereolithography (SLA) and binder jetting, have actually made it possible for the manufacture of complicated quartz ceramic elements with high geometric precision.
In these processes, silica nanoparticles are put on hold in a photosensitive material or uniquely bound layer-by-layer, followed by debinding and high-temperature sintering to achieve full densification.
This approach lowers material waste and permits the development of complex geometries– such as fluidic networks, optical cavities, or heat exchanger elements– that are difficult or difficult to attain with typical machining.
Post-processing methods, consisting of chemical vapor infiltration (CVI) or sol-gel coating, are often related to seal surface area porosity and improve mechanical and ecological resilience.
These innovations are broadening the application extent of quartz porcelains into micro-electromechanical systems (MEMS), lab-on-a-chip tools, and personalized high-temperature fixtures.
3. Useful Properties and Performance in Extreme Environments
3.1 Optical Openness and Dielectric Behavior
Quartz porcelains show distinct optical residential or commercial properties, including high transmission in the ultraviolet, noticeable, and near-infrared spectrum (from ~ 180 nm to 2500 nm), making them crucial in UV lithography, laser systems, and space-based optics.
This openness emerges from the absence of digital bandgap shifts in the UV-visible variety and marginal spreading due to homogeneity and reduced porosity.
Additionally, they possess superb dielectric properties, with a reduced dielectric constant (~ 3.8 at 1 MHz) and very little dielectric loss, enabling their use as insulating components in high-frequency and high-power digital systems, such as radar waveguides and plasma reactors.
Their ability to preserve electric insulation at raised temperatures better improves integrity popular electric environments.
3.2 Mechanical Habits and Long-Term Durability
Regardless of their high brittleness– a typical trait among porcelains– quartz ceramics show good mechanical toughness (flexural stamina as much as 100 MPa) and outstanding creep resistance at heats.
Their firmness (around 5.5– 6.5 on the Mohs range) gives resistance to surface abrasion, although care must be taken during taking care of to avoid damaging or split proliferation from surface area imperfections.
Environmental resilience is one more vital advantage: quartz porcelains do not outgas dramatically in vacuum cleaner, withstand radiation damage, and preserve dimensional security over prolonged exposure to thermal cycling and chemical atmospheres.
This makes them favored products in semiconductor manufacture chambers, aerospace sensing units, and nuclear instrumentation where contamination and failing should be minimized.
4. Industrial, Scientific, and Arising Technological Applications
4.1 Semiconductor and Photovoltaic Production Systems
In the semiconductor sector, quartz porcelains are common in wafer handling equipment, consisting of heating system tubes, bell jars, susceptors, and shower heads used in chemical vapor deposition (CVD) and plasma etching.
Their pureness prevents metal contamination of silicon wafers, while their thermal security guarantees consistent temperature circulation during high-temperature processing actions.
In photovoltaic or pv manufacturing, quartz elements are utilized in diffusion heating systems and annealing systems for solar battery manufacturing, where regular thermal accounts and chemical inertness are vital for high return and efficiency.
The need for larger wafers and higher throughput has driven the development of ultra-large quartz ceramic structures with improved homogeneity and reduced flaw thickness.
4.2 Aerospace, Defense, and Quantum Innovation Integration
Beyond commercial handling, quartz ceramics are used in aerospace applications such as projectile support windows, infrared domes, and re-entry vehicle elements due to their ability to endure extreme thermal slopes and wind resistant stress.
In protection systems, their transparency to radar and microwave frequencies makes them ideal for radomes and sensing unit real estates.
More just recently, quartz porcelains have found duties in quantum innovations, where ultra-low thermal expansion and high vacuum cleaner compatibility are needed for accuracy optical dental caries, atomic traps, and superconducting qubit units.
Their ability to minimize thermal drift makes sure long comprehensibility times and high dimension precision in quantum computer and picking up platforms.
In recap, quartz ceramics stand for a class of high-performance products that link the gap in between traditional ceramics and specialty glasses.
Their unequaled combination of thermal stability, chemical inertness, optical openness, and electric insulation allows innovations operating at the limitations of temperature level, pureness, and precision.
As making techniques evolve and demand grows for products capable of enduring progressively extreme conditions, quartz porcelains will certainly remain to play a fundamental function beforehand semiconductor, power, aerospace, and quantum systems.
