1. Essential Structure and Structural Attributes of Quartz Ceramics
1.1 Chemical Pureness and Crystalline-to-Amorphous Transition

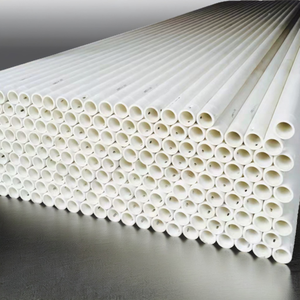

(Quartz Ceramics)
Quartz porcelains, also called merged silica or fused quartz, are a class of high-performance not natural products stemmed from silicon dioxide (SiO ₂) in its ultra-pure, non-crystalline (amorphous) type.
Unlike conventional porcelains that depend on polycrystalline structures, quartz ceramics are differentiated by their complete lack of grain boundaries as a result of their lustrous, isotropic network of SiO four tetrahedra interconnected in a three-dimensional random network.
This amorphous framework is achieved through high-temperature melting of all-natural quartz crystals or artificial silica precursors, complied with by fast cooling to prevent formation.
The resulting product has generally over 99.9% SiO ₂, with trace pollutants such as alkali metals (Na ⁺, K ⁺), light weight aluminum, and iron maintained parts-per-million levels to preserve optical clarity, electric resistivity, and thermal performance.
The lack of long-range order removes anisotropic behavior, making quartz ceramics dimensionally secure and mechanically consistent in all instructions– an important benefit in accuracy applications.
1.2 Thermal Behavior and Resistance to Thermal Shock
One of the most defining functions of quartz ceramics is their exceptionally reduced coefficient of thermal expansion (CTE), normally around 0.55 × 10 ⁻⁶/ K in between 20 ° C and 300 ° C.
This near-zero growth emerges from the adaptable Si– O– Si bond angles in the amorphous network, which can change under thermal stress without damaging, enabling the material to endure quick temperature modifications that would crack standard porcelains or metals.
Quartz porcelains can sustain thermal shocks going beyond 1000 ° C, such as straight immersion in water after heating up to heated temperature levels, without fracturing or spalling.
This residential or commercial property makes them vital in atmospheres involving repeated home heating and cooling cycles, such as semiconductor handling heating systems, aerospace components, and high-intensity lighting systems.
In addition, quartz ceramics preserve architectural honesty up to temperatures of around 1100 ° C in continuous solution, with temporary direct exposure tolerance coming close to 1600 ° C in inert environments.
( Quartz Ceramics)
Beyond thermal shock resistance, they exhibit high softening temperature levels (~ 1600 ° C )and outstanding resistance to devitrification– though extended direct exposure over 1200 ° C can start surface area formation right into cristobalite, which may jeopardize mechanical stamina because of quantity modifications during phase transitions.
2. Optical, Electric, and Chemical Qualities of Fused Silica Solution
2.1 Broadband Transparency and Photonic Applications
Quartz porcelains are renowned for their phenomenal optical transmission throughout a vast spectral array, expanding from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This transparency is enabled by the absence of contaminations and the homogeneity of the amorphous network, which decreases light scattering and absorption.
High-purity synthetic integrated silica, generated via fire hydrolysis of silicon chlorides, accomplishes even greater UV transmission and is made use of in vital applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The product’s high laser damage limit– withstanding malfunction under intense pulsed laser irradiation– makes it excellent for high-energy laser systems used in fusion study and commercial machining.
In addition, its reduced autofluorescence and radiation resistance guarantee reliability in scientific instrumentation, consisting of spectrometers, UV healing systems, and nuclear tracking gadgets.
2.2 Dielectric Performance and Chemical Inertness
From an electric point ofview, quartz ceramics are exceptional insulators with volume resistivity exceeding 10 ¹⁸ Ω · centimeters at room temperature and a dielectric constant of roughly 3.8 at 1 MHz.
Their reduced dielectric loss tangent (tan δ < 0.0001) guarantees marginal energy dissipation in high-frequency and high-voltage applications, making them appropriate for microwave home windows, radar domes, and insulating substratums in electronic assemblies.
These buildings stay steady over a broad temperature level range, unlike lots of polymers or traditional ceramics that deteriorate electrically under thermal anxiety.
Chemically, quartz porcelains show amazing inertness to a lot of acids, consisting of hydrochloric, nitric, and sulfuric acids, as a result of the security of the Si– O bond.
Nevertheless, they are at risk to assault by hydrofluoric acid (HF) and solid antacids such as hot sodium hydroxide, which damage the Si– O– Si network.
This selective reactivity is manipulated in microfabrication processes where controlled etching of integrated silica is needed.
In aggressive industrial atmospheres– such as chemical processing, semiconductor wet benches, and high-purity liquid handling– quartz porcelains work as linings, view glasses, and activator components where contamination must be lessened.
3. Production Processes and Geometric Design of Quartz Ceramic Components
3.1 Thawing and Forming Methods
The manufacturing of quartz porcelains entails several specialized melting methods, each customized to specific pureness and application demands.
Electric arc melting uses high-purity quartz sand melted in a water-cooled copper crucible under vacuum cleaner or inert gas, generating huge boules or tubes with exceptional thermal and mechanical residential or commercial properties.
Flame blend, or combustion synthesis, includes melting silicon tetrachloride (SiCl four) in a hydrogen-oxygen fire, depositing fine silica particles that sinter right into a clear preform– this approach yields the highest optical quality and is used for synthetic merged silica.
Plasma melting uses an alternative path, providing ultra-high temperatures and contamination-free processing for niche aerospace and protection applications.
When thawed, quartz ceramics can be formed with precision spreading, centrifugal forming (for tubes), or CNC machining of pre-sintered spaces.
Due to their brittleness, machining needs diamond tools and mindful control to stay clear of microcracking.
3.2 Accuracy Construction and Surface Area Completing
Quartz ceramic components are typically produced into complicated geometries such as crucibles, tubes, rods, home windows, and personalized insulators for semiconductor, photovoltaic, and laser sectors.
Dimensional accuracy is critical, particularly in semiconductor manufacturing where quartz susceptors and bell containers must maintain precise placement and thermal uniformity.
Surface area finishing plays a crucial role in efficiency; polished surfaces lower light spreading in optical components and reduce nucleation websites for devitrification in high-temperature applications.
Engraving with buffered HF remedies can generate controlled surface appearances or eliminate damaged layers after machining.
For ultra-high vacuum cleaner (UHV) systems, quartz porcelains are cleansed and baked to eliminate surface-adsorbed gases, ensuring very little outgassing and compatibility with sensitive procedures like molecular light beam epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Duty in Semiconductor and Photovoltaic Manufacturing
Quartz porcelains are foundational materials in the fabrication of integrated circuits and solar cells, where they serve as heating system tubes, wafer watercrafts (susceptors), and diffusion chambers.
Their capacity to withstand high temperatures in oxidizing, minimizing, or inert ambiences– integrated with reduced metallic contamination– ensures process pureness and yield.
During chemical vapor deposition (CVD) or thermal oxidation, quartz parts keep dimensional stability and stand up to bending, avoiding wafer breakage and imbalance.
In photovoltaic production, quartz crucibles are used to expand monocrystalline silicon ingots using the Czochralski procedure, where their purity directly influences the electrical quality of the final solar cells.
4.2 Usage in Lights, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lights and UV sanitation systems, quartz ceramic envelopes contain plasma arcs at temperatures surpassing 1000 ° C while transmitting UV and visible light efficiently.
Their thermal shock resistance protects against failing throughout rapid light ignition and shutdown cycles.
In aerospace, quartz porcelains are utilized in radar home windows, sensor real estates, and thermal security systems due to their reduced dielectric consistent, high strength-to-density proportion, and security under aerothermal loading.
In logical chemistry and life sciences, merged silica blood vessels are important in gas chromatography (GC) and capillary electrophoresis (CE), where surface inertness protects against sample adsorption and makes sure accurate separation.
In addition, quartz crystal microbalances (QCMs), which count on the piezoelectric properties of crystalline quartz (distinctive from fused silica), utilize quartz ceramics as protective housings and insulating supports in real-time mass sensing applications.
To conclude, quartz porcelains represent a special intersection of severe thermal durability, optical transparency, and chemical purity.
Their amorphous framework and high SiO ₂ web content allow performance in environments where traditional products stop working, from the heart of semiconductor fabs to the edge of room.
As technology advances towards higher temperatures, better precision, and cleaner processes, quartz ceramics will certainly remain to work as a crucial enabler of technology throughout scientific research and industry.
