1. Product Principles and Structural Properties of Alumina Ceramics
1.1 Composition, Crystallography, and Phase Security

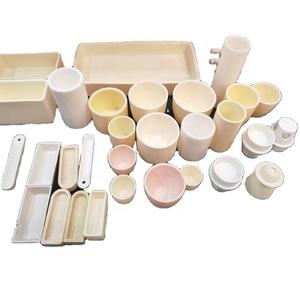

(Alumina Crucible)
Alumina crucibles are precision-engineered ceramic vessels made mainly from light weight aluminum oxide (Al ₂ O FOUR), among the most extensively used advanced ceramics because of its outstanding combination of thermal, mechanical, and chemical stability.
The leading crystalline phase in these crucibles is alpha-alumina (α-Al two O FIVE), which comes from the diamond structure– a hexagonal close-packed setup of oxygen ions with two-thirds of the octahedral interstices inhabited by trivalent light weight aluminum ions.
This thick atomic packaging leads to strong ionic and covalent bonding, giving high melting point (2072 ° C), exceptional solidity (9 on the Mohs scale), and resistance to creep and contortion at raised temperature levels.
While pure alumina is excellent for many applications, trace dopants such as magnesium oxide (MgO) are commonly added during sintering to prevent grain development and enhance microstructural uniformity, thus enhancing mechanical toughness and thermal shock resistance.
The stage pureness of α-Al two O three is important; transitional alumina phases (e.g., γ, δ, θ) that develop at reduced temperature levels are metastable and undergo volume modifications upon conversion to alpha phase, potentially bring about fracturing or failure under thermal biking.
1.2 Microstructure and Porosity Control in Crucible Manufacture
The performance of an alumina crucible is profoundly influenced by its microstructure, which is established throughout powder processing, creating, and sintering phases.
High-purity alumina powders (normally 99.5% to 99.99% Al ₂ O FOUR) are formed right into crucible kinds using strategies such as uniaxial pressing, isostatic pushing, or slide casting, complied with by sintering at temperatures in between 1500 ° C and 1700 ° C.
During sintering, diffusion devices drive bit coalescence, minimizing porosity and increasing density– ideally accomplishing > 99% academic thickness to reduce leaks in the structure and chemical seepage.
Fine-grained microstructures improve mechanical toughness and resistance to thermal stress and anxiety, while regulated porosity (in some customized grades) can enhance thermal shock resistance by dissipating stress power.
Surface coating is additionally critical: a smooth indoor surface minimizes nucleation sites for undesirable responses and assists in simple elimination of solidified materials after processing.
Crucible geometry– consisting of wall surface density, curvature, and base design– is enhanced to stabilize heat transfer performance, architectural stability, and resistance to thermal slopes throughout fast heating or cooling.
( Alumina Crucible)
2. Thermal and Chemical Resistance in Extreme Environments
2.1 High-Temperature Performance and Thermal Shock Behavior
Alumina crucibles are regularly employed in atmospheres surpassing 1600 ° C, making them indispensable in high-temperature materials research, metal refining, and crystal development procedures.
They show low thermal conductivity (~ 30 W/m · K), which, while limiting warm transfer prices, additionally provides a level of thermal insulation and assists preserve temperature slopes needed for directional solidification or zone melting.
A crucial difficulty is thermal shock resistance– the capability to withstand abrupt temperature level modifications without fracturing.
Although alumina has a relatively low coefficient of thermal development (~ 8 × 10 ⁻⁶/ K), its high stiffness and brittleness make it prone to fracture when subjected to high thermal slopes, specifically throughout fast heating or quenching.
To alleviate this, individuals are advised to adhere to controlled ramping methods, preheat crucibles slowly, and stay clear of direct exposure to open up fires or cool surfaces.
Advanced qualities include zirconia (ZrO ₂) strengthening or graded make-ups to enhance split resistance with devices such as phase improvement strengthening or residual compressive stress generation.
2.2 Chemical Inertness and Compatibility with Responsive Melts
Among the defining advantages of alumina crucibles is their chemical inertness toward a variety of molten steels, oxides, and salts.
They are very resistant to standard slags, molten glasses, and lots of metallic alloys, including iron, nickel, cobalt, and their oxides, which makes them appropriate for usage in metallurgical analysis, thermogravimetric experiments, and ceramic sintering.
However, they are not globally inert: alumina reacts with strongly acidic fluxes such as phosphoric acid or boron trioxide at high temperatures, and it can be corroded by molten alkalis like sodium hydroxide or potassium carbonate.
Particularly crucial is their interaction with aluminum steel and aluminum-rich alloys, which can lower Al ₂ O six using the response: 2Al + Al Two O ₃ → 3Al two O (suboxide), bring about pitting and eventual failing.
In a similar way, titanium, zirconium, and rare-earth metals display high sensitivity with alumina, forming aluminides or complicated oxides that compromise crucible stability and pollute the melt.
For such applications, alternate crucible materials like yttria-stabilized zirconia (YSZ), boron nitride (BN), or molybdenum are preferred.
3. Applications in Scientific Research and Industrial Processing
3.1 Duty in Materials Synthesis and Crystal Growth
Alumina crucibles are central to various high-temperature synthesis courses, including solid-state responses, flux development, and thaw processing of functional porcelains and intermetallics.
In solid-state chemistry, they function as inert containers for calcining powders, manufacturing phosphors, or preparing precursor products for lithium-ion battery cathodes.
For crystal development strategies such as the Czochralski or Bridgman methods, alumina crucibles are utilized to have molten oxides like yttrium aluminum garnet (YAG) or neodymium-doped glasses for laser applications.
Their high purity ensures marginal contamination of the expanding crystal, while their dimensional security sustains reproducible growth problems over extended periods.
In change growth, where solitary crystals are grown from a high-temperature solvent, alumina crucibles must stand up to dissolution by the flux medium– generally borates or molybdates– requiring cautious selection of crucible quality and handling parameters.
3.2 Use in Analytical Chemistry and Industrial Melting Operations
In logical laboratories, alumina crucibles are typical equipment in thermogravimetric evaluation (TGA) and differential scanning calorimetry (DSC), where precise mass dimensions are made under regulated environments and temperature ramps.
Their non-magnetic nature, high thermal stability, and compatibility with inert and oxidizing environments make them suitable for such accuracy dimensions.
In industrial setups, alumina crucibles are utilized in induction and resistance furnaces for melting rare-earth elements, alloying, and casting operations, particularly in precious jewelry, dental, and aerospace element manufacturing.
They are likewise made use of in the production of technological ceramics, where raw powders are sintered or hot-pressed within alumina setters and crucibles to prevent contamination and guarantee uniform heating.
4. Limitations, Taking Care Of Practices, and Future Product Enhancements
4.1 Operational Constraints and Ideal Practices for Durability
Despite their effectiveness, alumina crucibles have distinct operational restrictions that should be valued to make sure safety and efficiency.
Thermal shock remains the most usual root cause of failure; consequently, progressive heating and cooling cycles are essential, particularly when transitioning via the 400– 600 ° C variety where residual anxieties can build up.
Mechanical damage from messing up, thermal cycling, or call with hard products can initiate microcracks that propagate under stress and anxiety.
Cleaning must be executed carefully– staying clear of thermal quenching or rough methods– and used crucibles ought to be checked for indications of spalling, discoloration, or deformation before reuse.
Cross-contamination is an additional worry: crucibles made use of for responsive or hazardous products must not be repurposed for high-purity synthesis without thorough cleaning or ought to be disposed of.
4.2 Emerging Trends in Composite and Coated Alumina Equipments
To extend the capabilities of traditional alumina crucibles, scientists are creating composite and functionally graded products.
Examples consist of alumina-zirconia (Al two O SIX-ZrO TWO) composites that enhance toughness and thermal shock resistance, or alumina-silicon carbide (Al ₂ O THREE-SiC) variations that boost thermal conductivity for more uniform home heating.
Surface coatings with rare-earth oxides (e.g., yttria or scandia) are being explored to develop a diffusion obstacle against responsive steels, therefore increasing the variety of suitable thaws.
In addition, additive production of alumina elements is arising, allowing custom-made crucible geometries with interior networks for temperature surveillance or gas flow, opening new opportunities in process control and activator style.
To conclude, alumina crucibles continue to be a foundation of high-temperature technology, valued for their integrity, pureness, and adaptability throughout scientific and commercial domains.
Their proceeded evolution through microstructural engineering and hybrid material layout guarantees that they will certainly continue to be essential devices in the advancement of products science, power modern technologies, and progressed production.
