1. Material Basics and Microstructural Attributes of Alumina Ceramics
1.1 Structure, Pureness Qualities, and Crystallographic Feature

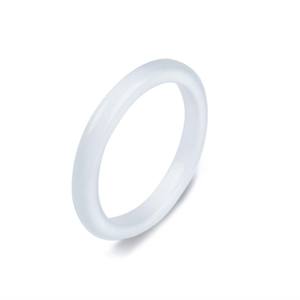

(Alumina Ceramic Wear Liners)
Alumina (Al Two O THREE), or aluminum oxide, is just one of the most widely made use of technical ceramics in commercial engineering because of its outstanding balance of mechanical toughness, chemical stability, and cost-effectiveness.
When engineered into wear linings, alumina ceramics are normally made with pureness degrees ranging from 85% to 99.9%, with higher purity representing enhanced firmness, put on resistance, and thermal efficiency.
The dominant crystalline phase is alpha-alumina, which takes on a hexagonal close-packed (HCP) structure identified by solid ionic and covalent bonding, contributing to its high melting point (~ 2072 ° C )and reduced thermal conductivity.
Microstructurally, alumina porcelains include penalty, equiaxed grains whose dimension and distribution are regulated during sintering to maximize mechanical buildings.
Grain sizes commonly vary from submicron to a number of micrometers, with better grains generally boosting fracture sturdiness and resistance to break breeding under rough packing.
Minor additives such as magnesium oxide (MgO) are often introduced in trace amounts to hinder irregular grain growth throughout high-temperature sintering, making sure consistent microstructure and dimensional stability.
The resulting material exhibits a Vickers hardness of 1500– 2000 HV, considerably surpassing that of solidified steel (commonly 600– 800 HV), making it incredibly immune to surface area degradation in high-wear settings.
1.2 Mechanical and Thermal Performance in Industrial Conditions
Alumina ceramic wear liners are picked primarily for their outstanding resistance to rough, erosive, and gliding wear systems widespread in bulk product taking care of systems.
They have high compressive toughness (up to 3000 MPa), excellent flexural strength (300– 500 MPa), and excellent stiffness (Youthful’s modulus of ~ 380 Grade point average), enabling them to withstand intense mechanical loading without plastic contortion.
Although naturally brittle contrasted to metals, their reduced coefficient of rubbing and high surface hardness reduce fragment bond and minimize wear rates by orders of magnitude relative to steel or polymer-based alternatives.
Thermally, alumina keeps structural honesty approximately 1600 ° C in oxidizing environments, permitting use in high-temperature processing environments such as kiln feed systems, boiler ducting, and pyroprocessing devices.

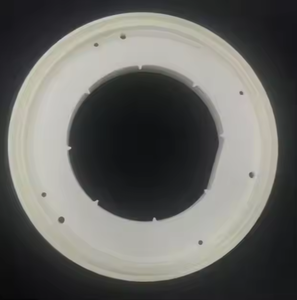

( Alumina Ceramic Wear Liners)
Its low thermal growth coefficient (~ 8 × 10 ⁻⁶/ K) contributes to dimensional stability during thermal biking, lowering the threat of fracturing as a result of thermal shock when correctly installed.
Additionally, alumina is electrically insulating and chemically inert to most acids, alkalis, and solvents, making it appropriate for harsh settings where metallic linings would certainly weaken swiftly.
These combined homes make alumina porcelains optimal for securing essential facilities in mining, power generation, concrete production, and chemical processing sectors.
2. Production Processes and Design Integration Techniques
2.1 Shaping, Sintering, and Quality Assurance Protocols
The production of alumina ceramic wear liners involves a sequence of accuracy manufacturing actions developed to attain high thickness, marginal porosity, and regular mechanical efficiency.
Raw alumina powders are processed through milling, granulation, and developing strategies such as dry pressing, isostatic pressing, or extrusion, depending on the wanted geometry– floor tiles, plates, pipelines, or custom-shaped segments.
Environment-friendly bodies are then sintered at temperatures between 1500 ° C and 1700 ° C in air, advertising densification with solid-state diffusion and attaining relative thickness surpassing 95%, typically approaching 99% of theoretical thickness.
Complete densification is crucial, as residual porosity works as anxiety concentrators and speeds up wear and crack under solution conditions.
Post-sintering procedures might include diamond grinding or splashing to achieve tight dimensional resistances and smooth surface finishes that lessen rubbing and particle trapping.
Each batch goes through extensive quality assurance, including X-ray diffraction (XRD) for phase evaluation, scanning electron microscopy (SEM) for microstructural analysis, and firmness and bend screening to confirm compliance with international standards such as ISO 6474 or ASTM B407.
2.2 Installing Strategies and System Compatibility Factors To Consider
Efficient assimilation of alumina wear liners right into commercial devices requires careful attention to mechanical attachment and thermal growth compatibility.
Common installment techniques consist of sticky bonding making use of high-strength ceramic epoxies, mechanical attaching with studs or anchors, and embedding within castable refractory matrices.
Sticky bonding is extensively utilized for flat or delicately rounded surfaces, giving uniform stress distribution and vibration damping, while stud-mounted systems enable very easy replacement and are chosen in high-impact zones.
To fit differential thermal development between alumina and metallic substratums (e.g., carbon steel), crafted spaces, flexible adhesives, or certified underlayers are integrated to avoid delamination or splitting during thermal transients.
Developers have to additionally think about side protection, as ceramic floor tiles are susceptible to damaging at revealed edges; options consist of beveled sides, steel shadows, or overlapping floor tile arrangements.
Correct setup ensures lengthy life span and maximizes the protective function of the lining system.
3. Use Mechanisms and Performance Analysis in Solution Environments
3.1 Resistance to Abrasive, Erosive, and Effect Loading
Alumina ceramic wear linings excel in environments controlled by three key wear systems: two-body abrasion, three-body abrasion, and particle disintegration.
In two-body abrasion, hard fragments or surface areas straight gouge the lining surface, a common event in chutes, hoppers, and conveyor transitions.
Three-body abrasion includes loosened particles entraped between the lining and moving product, resulting in rolling and scratching action that slowly removes material.
Abrasive wear occurs when high-velocity fragments impinge on the surface area, specifically in pneumatic conveying lines and cyclone separators.
Due to its high firmness and reduced fracture sturdiness, alumina is most reliable in low-impact, high-abrasion circumstances.
It executes incredibly well against siliceous ores, coal, fly ash, and concrete clinker, where wear rates can be decreased by 10– 50 times compared to mild steel liners.
However, in applications entailing repeated high-energy influence, such as main crusher chambers, hybrid systems integrating alumina tiles with elastomeric supports or metallic shields are typically used to soak up shock and protect against crack.
3.2 Field Screening, Life Cycle Evaluation, and Failure Mode Evaluation
Efficiency assessment of alumina wear linings entails both laboratory screening and area tracking.
Standard tests such as the ASTM G65 completely dry sand rubber wheel abrasion examination supply comparative wear indices, while tailored slurry disintegration rigs simulate site-specific problems.
In commercial settings, put on price is typically determined in mm/year or g/kWh, with service life forecasts based upon first thickness and observed deterioration.
Failing modes consist of surface sprucing up, micro-cracking, spalling at sides, and complete tile dislodgement due to adhesive deterioration or mechanical overload.
Root cause analysis typically discloses setup mistakes, improper quality selection, or unexpected impact lots as key contributors to early failure.
Life cycle price analysis consistently demonstrates that in spite of greater initial prices, alumina liners offer remarkable complete price of ownership because of extended replacement periods, lowered downtime, and reduced upkeep labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Applications Throughout Heavy Industries
Alumina ceramic wear liners are deployed across a broad range of commercial fields where material destruction presents operational and economic difficulties.
In mining and mineral handling, they shield transfer chutes, mill linings, hydrocyclones, and slurry pumps from rough slurries having quartz, hematite, and other tough minerals.
In power plants, alumina tiles line coal pulverizer ducts, boiler ash receptacles, and electrostatic precipitator components exposed to fly ash disintegration.
Cement makers use alumina liners in raw mills, kiln inlet zones, and clinker conveyors to fight the extremely abrasive nature of cementitious materials.
The steel market uses them in blast heating system feed systems and ladle shrouds, where resistance to both abrasion and modest thermal loads is necessary.
Even in less conventional applications such as waste-to-energy plants and biomass handling systems, alumina ceramics supply sturdy protection against chemically hostile and fibrous products.
4.2 Arising Trends: Compound Solutions, Smart Liners, and Sustainability
Present research study focuses on boosting the toughness and performance of alumina wear systems via composite layout.
Alumina-zirconia (Al Two O ₃-ZrO ₂) compounds utilize change strengthening from zirconia to enhance crack resistance, while alumina-titanium carbide (Al ₂ O THREE-TiC) grades use boosted efficiency in high-temperature sliding wear.
Another advancement includes installing sensing units within or under ceramic liners to keep track of wear progression, temperature level, and effect frequency– enabling predictive upkeep and digital double combination.
From a sustainability viewpoint, the extended service life of alumina liners lowers material consumption and waste generation, aligning with round economic climate principles in industrial operations.
Recycling of spent ceramic liners into refractory aggregates or building products is also being explored to reduce ecological footprint.
To conclude, alumina ceramic wear linings stand for a foundation of contemporary industrial wear security modern technology.
Their remarkable firmness, thermal stability, and chemical inertness, combined with fully grown manufacturing and installation practices, make them essential in combating product degradation across hefty sectors.
As material science breakthroughs and digital surveillance becomes a lot more integrated, the future generation of clever, resistant alumina-based systems will additionally improve functional effectiveness and sustainability in unpleasant settings.
