1. Introduction to Oil Immersed Transformers
In the intricate web of our contemporary electric grid, transformers play a vital duty, quietly stepping voltage up and down to make sure electricity can be sent efficiently over long distances and dispersed securely to our homes and industries. Among the various types available, the oil submersed transformer stands as a testimony to tried and tested reliability and longevity. For years, these workhorses have actually formed the foundation of power systems worldwide.
An oil submersed transformer is a kind of electric transformer that makes use of a customized shielding oil as both a coolant and a protecting tool. This style is primarily made use of for medium to high-power applications, making it a cornerstone of electric framework. This overview dives deep right into the world of oil submersed power transformers and oil submersed distribution transformers, discovering their innovation, applications, and their evolving role in an era of digitalization and renewable resource.
1.1 What is an Oil Immersed Transformer?
At its core, an oil immersed transformer includes a magnetic core and copper or light weight aluminum windings housed inside a secured storage tank filled with protecting oil. The primary function of the oil is twofold:
1. Insulation: The oil possesses high dielectric strength, successfully insulating the high-voltage windings from the transformer’s core and grounded storage tank. This stops short circuits and electric failures.
2. Air conditioning: As the transformer runs, the windings generate substantial warmth due to I ² R losses. The circulating oil absorbs this warm, convects it to the transformer’s storage tank wall surfaces, and dissipates it into the surrounding air. Larger units commonly include radiators or fins to increase the surface for extra effective cooling.
This dual-purpose use oil makes the oil immersed transformer remarkably effective and robust, capable of dealing with high tons and enduring transient overloads better than many dry-type choices.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Distribution Transformer
While all these devices are oil submersed transformers, they offer distinctive functions within the power system network. Recognizing the difference is important.
An oil submersed power transformer is a heavyweight, commonly utilized in transmission networks at generating stations and significant substations. Their main function is to “step-up” the voltage created at the power plant to extremely high levels (e.g., 138 kV, 230 kV, 500 kV and above) for effective long-distance transmission, and to “step-down” the voltage at getting substations for additional distribution. They are identified by their really high power scores (commonly surpassing 100 MVA), complicated building and construction, and on-load faucet changers for voltage regulation.
An oil involved distribution transformer, on the various other hand, performs the final action in the power distribution chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and tips it to the reduced voltages (e.g., 400/230 V) used by commercial and residential consumers. You frequently locate them on utility posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller, have reduced power rankings (commonly as much as 2,500 kVA), and are designed for maximum effectiveness at lower, more constant lots.

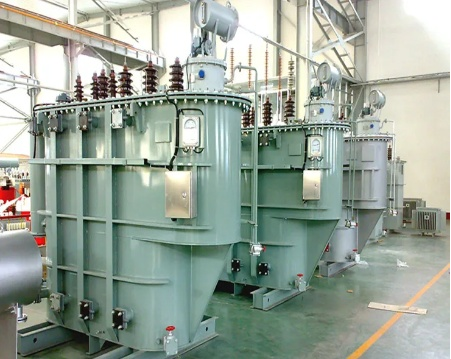

(Oil immersed power transformer)
2. Secret Benefits of Oil Submersed Transformers
The enduring appeal of the oil submersed transformer is not unintentional. It uses a suite of compelling advantages that make it the recommended choice for several demanding applications.
2.1 Superior Air Conditioning and Overload Capacity
The premium thermal capacity of oil contrasted to air permits an oil immersed power transformer to handle and dissipate heat much more properly. This converts to a higher overload capacity. During periods of height power demand, an oil immersed transformer can deal with short-term overloads without enduring damage, a crucial attribute for preserving grid stability. The oil’s circulation ensures even heat distribution, preventing local hot spots that can weaken insulation gradually.
2.2 Boosted Insulation and Long Life Span
The combination of high-grade mineral oil and carefully impregnated paper insulation develops a dielectric system of phenomenal stamina. This robust insulation system protects the transformer from voltage rises and transients, contributing to an operational life-span that can include 30-40 years or even more with proper upkeep. The sealed container likewise protects the inner components from dampness, dirt, and various other atmospheric pollutants.
2.3 High Performance and Cost-Effectiveness
For high-power applications, the oil submersed transformer is often the most affordable choice. The products used– mineral oil, steel container, and copper/aluminum windings– provide a beneficial balance of performance and cost. The high efficiency of these transformers, especially at their ranked tons, causes lower energy losses over their lifetime, resulting in substantial expense financial savings for utility business and big commercial customers.
3. Warm Subjects and Future Trends
The world of oil immersed transformers is not fixed. It is constantly progressing to meet brand-new challenges and integrate with modern-day innovations.
3.1 Naturally Degradable and Fireproof Oils
Environmental and security concerns are driving a substantial shift far from conventional mineral oil. The marketplace is rapidly embracing oil immersed transformers loaded with biodegradable esters (synthetic or natural). These oils use a greater fire factor (making them K-class fireproof), are much less toxic, and are conveniently naturally degradable, considerably reducing the ecological influence in situation of a leak. This trend is making oil submersed distribution transformers more secure for installment in city locations and environmentally sensitive locations.
3.2 Assimilation with Smart Grids and IoT
The modern oil engaged power transformer is ending up being a smart node in the smart grid. Sensors are being integrated to monitor essential criteria in real-time, consisting of:
Dissolved Gas Analysis (DGA): Spotting mistake gases produced within the oil to predict incipient faults.
Temperature Level Tracking: Tracking top-oil and hotspot temperatures.
Lots and Power Quality Tracking.
This data, sent by means of IoT (Web of Points) platforms, allows anticipating upkeep, stops unexpected blackouts, and optimizes transformer utilization and life-span.
3.3 Sustaining the Renewable Energy Shift
The international promote renewables is producing new need for oil immersed transformers. Massive solar ranches and wind power setups need durable oil immersed power transformers to step up the created voltage to transmission levels. Moreover, the recurring nature of renewables areas greater stress and anxiety on grid elements, and the tested integrity and overload capability of oil immersed transformers make them perfect for this vital duty.
4. Option and Upkeep Best Practices
Selecting the ideal transformer and keeping it correctly is key to a trusted power system.
4.1 Just how to Choose the Right Oil Immersed Transformer
Choosing between an oil immersed power transformer and an oil immersed circulation transformer depends on the application. Secret considerations include:
1. Voltage Level and kVA Ranking: Match the transformer’s specifications to your system’s demands.
2. Application: Transmission substation, industrial plant, or commercial circulation.
3. Area: Indoor vs. outdoor, ecological conditions, and fire security regulations (which may influence the selection of insulating oil).
4. Performance Specifications: Comply with local effectiveness requirements like DOE (USA) or EU CoC (Europe).
5. Spending plan: Take into consideration both the initial capital expense and the overall expense of possession, including losses.

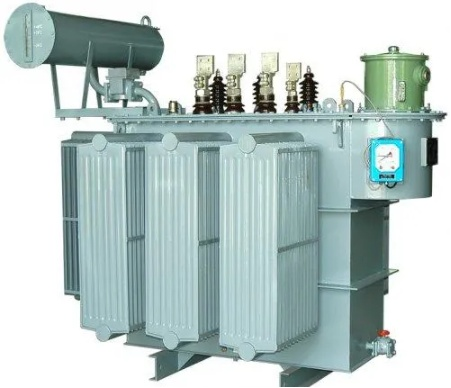

(Oil immersed distribution transformer)
4.2 Vital Maintenance for Longevity
Proactive upkeep is vital for any kind of oil immersed transformer. A detailed program must consist of:
1. Routine Oil Sampling and Testing: Regular DGA and screening of dielectric stamina and wetness web content are one of the most reliable methods to assess the wellness of the transformer.
2. Bushing and Insulation Examination: Aesthetic look for fractures, contamination, or leakages.
3. Tap Changer Upkeep: Routine inspection and maintenance of on-load or off-load tap changers.
4. Maintain it Tidy and Dry: Making sure the container exterior, radiators, and rests are clean and useful.
The oil immersed transformer, in its functions as both a high-capacity oil submersed power transformer and an ubiquitous oil immersed distribution transformer, continues to be an irreplaceable element of our international power framework. Its proven style, combined with continuous innovations in insulating liquids and digital surveillance, guarantees it will certainly remain to be a reputable, reliable, and smart solution for powering our world for years to find. As we develop the grids of the future, integrating more renewables and electronic intelligence, the durable and adaptable oil submersed transformer will unquestionably go to the heart of it.
