1. Product Principles and Microstructural Design
1.1 Make-up and Crystallographic Stability of Alumina

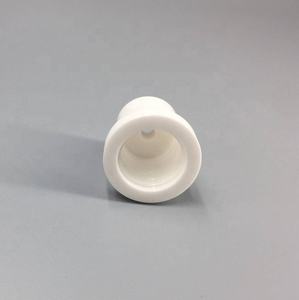

(Alumina Ceramic Nozzles)
Alumina (Al Two O SIX), particularly in its alpha phase, is a fully oxidized ceramic with a corundum-type hexagonal close-packed framework, using outstanding thermal security, chemical inertness, and mechanical stamina at raised temperatures.
High-purity alumina (normally 95– 99.9% Al ₂ O SIX) is favored for nozzle applications as a result of its very little pollutant material, which lowers grain border weakening and improves resistance to thermal and chemical degradation.
The microstructure, consisting of penalty, equiaxed grains, is engineered throughout sintering to decrease porosity and make the most of density, straight affecting the nozzle’s disintegration resistance and architectural integrity under high-velocity liquid flow.
Additives such as MgO are typically presented in trace total up to hinder irregular grain development during sintering, making certain a consistent microstructure that supports lasting reliability.
1.2 Mechanical and Thermal Residences Relevant to Nozzle Efficiency
Alumina ceramics display a Vickers hardness surpassing 1800 HV, making them extremely resistant to abrasive wear from particulate-laden fluids, an important quality in applications such as sandblasting and unpleasant waterjet cutting.
With a flexural stamina of 300– 500 MPa and a compressive strength over 2 GPa, alumina nozzles maintain dimensional stability under high-pressure operation, usually varying from 100 to 400 MPa in commercial systems.
Thermally, alumina keeps its mechanical residential or commercial properties as much as 1600 ° C, with a reduced thermal development coefficient (~ 8 × 10 ⁻⁶/ K) that provides excellent resistance to thermal shock– vital when exposed to rapid temperature fluctuations throughout startup or closure cycles.
Its thermal conductivity (~ 30 W/m · K) is sufficient to dissipate local warm without inducing thermal slopes that might cause cracking, stabilizing insulation and warmth administration requirements.
2. Production Processes and Geometric Precision
2.1 Forming and Sintering Techniques for Nozzle Manufacture
The production of alumina ceramic nozzles starts with high-purity alumina powder, which is processed right into a green body utilizing techniques such as chilly isostatic pressing (CIP), shot molding, or extrusion, relying on the desired geometry and batch dimension.
( Alumina Ceramic Nozzles)
Cold isostatic pressing applies consistent stress from all instructions, yielding an uniform thickness distribution essential for decreasing issues throughout sintering.
Shot molding is utilized for complicated nozzle forms with internal tapers and fine orifices, allowing high dimensional precision and reproducibility in mass production.
After forming, the environment-friendly compacts undergo a two-stage thermal therapy: debinding to eliminate natural binders and sintering at temperature levels between 1500 ° C and 1650 ° C to attain near-theoretical density with solid-state diffusion.
Accurate control of sintering atmosphere and heating/cooling prices is important to avoid bending, breaking, or grain coarsening that might endanger nozzle performance.
2.2 Machining, Polishing, and Quality Assurance
Post-sintering, alumina nozzles frequently need accuracy machining to accomplish tight resistances, especially in the orifice region where circulation characteristics are most conscious surface area coating and geometry.
Ruby grinding and lapping are used to refine interior and exterior surface areas, accomplishing surface area roughness values listed below 0.1 µm, which minimizes circulation resistance and avoids bit build-up.
The orifice, generally ranging from 0.3 to 3.0 mm in diameter, should be devoid of micro-cracks and chamfers to ensure laminar circulation and regular spray patterns.
Non-destructive screening techniques such as optical microscopy, X-ray evaluation, and stress cycling tests are used to validate structural integrity and efficiency consistency before deployment.
Custom geometries, consisting of convergent-divergent (de Laval) accounts for supersonic flow or multi-hole varieties for follower spray patterns, are increasingly made making use of advanced tooling and computer-aided style (CAD)-driven manufacturing.
3. Functional Advantages Over Alternate Nozzle Products
3.1 Superior Erosion and Rust Resistance
Contrasted to metallic (e.g., tungsten carbide, stainless steel) or polymer nozzles, alumina exhibits far higher resistance to abrasive wear, particularly in environments entailing silica sand, garnet, or other hard abrasives used in surface prep work and cutting.
Steel nozzles degrade rapidly as a result of micro-fracturing and plastic deformation, calling for constant substitute, whereas alumina nozzles can last 3– 5 times longer, significantly lowering downtime and functional costs.
In addition, alumina is inert to most acids, antacid, and solvents, making it appropriate for chemical splashing, etching, and cleaning processes where metal elements would certainly wear away or infect the fluid.
This chemical security is specifically important in semiconductor manufacturing, pharmaceutical handling, and food-grade applications calling for high pureness.
3.2 Thermal and Electrical Insulation Characteristic
Alumina’s high electrical resistivity (> 10 ¹⁴ Ω · centimeters) makes it ideal for usage in electrostatic spray layer systems, where it protects against charge leak and makes sure uniform paint atomization.
Its thermal insulation capability allows risk-free procedure in high-temperature spraying environments, such as fire spraying or thermal cleansing, without heat transfer to surrounding parts.
Unlike steels, alumina does not catalyze unwanted chain reaction in reactive fluid streams, maintaining the integrity of sensitive solutions.
4. Industrial Applications and Technical Impact
4.1 Functions in Abrasive Jet Machining and Surface Area Therapy
Alumina ceramic nozzles are indispensable in abrasive blowing up systems for corrosion elimination, paint stripping, and surface texturing in vehicle, aerospace, and building and construction sectors.
Their capacity to maintain a consistent orifice diameter over prolonged usage guarantees consistent rough velocity and effect angle, straight affecting surface coating high quality and process repeatability.
In rough waterjet cutting, alumina concentrating tubes lead the high-pressure water-abrasive mix, enduring erosive forces that would rapidly weaken softer materials.
4.2 Usage in Additive Manufacturing, Spray Finish, and Liquid Control
In thermal spray systems, such as plasma and fire spraying, alumina nozzles direct high-temperature gas circulations and liquified fragments onto substratums, taking advantage of their thermal shock resistance and dimensional security.
They are likewise utilized in accuracy spray nozzles for farming chemicals, inkjet systems, and gas atomization, where wear resistance guarantees lasting application accuracy.
In 3D printing, especially in binder jetting and material extrusion, alumina nozzles provide fine powders or viscous pastes with marginal blocking or wear.
Emerging applications consist of microfluidic systems and lab-on-a-chip devices, where miniaturized alumina components offer durability and biocompatibility.
In summary, alumina ceramic nozzles represent a vital crossway of materials science and commercial engineering.
Their extraordinary combination of hardness, thermal stability, and chemical resistance makes it possible for reliable performance in several of one of the most demanding fluid handling settings.
As commercial procedures push towards higher stress, finer resistances, and much longer solution intervals, alumina porcelains remain to set the criterion for sturdy, high-precision flow control elements.
