1. Crystal Structure and Layered Anisotropy
1.1 The 2H and 1T Polymorphs: Architectural and Electronic Duality

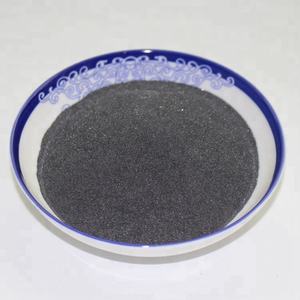

(Molybdenum Disulfide)
Molybdenum disulfide (MoS TWO) is a layered change steel dichalcogenide (TMD) with a chemical formula containing one molybdenum atom sandwiched in between two sulfur atoms in a trigonal prismatic control, forming covalently bound S– Mo– S sheets.
These individual monolayers are piled up and down and held with each other by weak van der Waals pressures, enabling easy interlayer shear and exfoliation to atomically slim two-dimensional (2D) crystals– a structural function main to its varied practical roles.
MoS ₂ exists in numerous polymorphic kinds, one of the most thermodynamically secure being the semiconducting 2H phase (hexagonal proportion), where each layer shows a direct bandgap of ~ 1.8 eV in monolayer kind that transitions to an indirect bandgap (~ 1.3 eV) in bulk, a phenomenon crucial for optoelectronic applications.
In contrast, the metastable 1T phase (tetragonal proportion) takes on an octahedral coordination and behaves as a metallic conductor because of electron contribution from the sulfur atoms, allowing applications in electrocatalysis and conductive compounds.
Stage shifts in between 2H and 1T can be generated chemically, electrochemically, or with strain design, supplying a tunable system for making multifunctional devices.
The capacity to stabilize and pattern these stages spatially within a solitary flake opens paths for in-plane heterostructures with distinct digital domain names.
1.2 Defects, Doping, and Edge States
The efficiency of MoS ₂ in catalytic and electronic applications is extremely conscious atomic-scale problems and dopants.
Intrinsic point issues such as sulfur vacancies serve as electron donors, raising n-type conductivity and working as active sites for hydrogen advancement reactions (HER) in water splitting.
Grain limits and line defects can either restrain cost transport or create local conductive pathways, relying on their atomic setup.
Managed doping with shift steels (e.g., Re, Nb) or chalcogens (e.g., Se) permits fine-tuning of the band structure, provider focus, and spin-orbit coupling effects.
Notably, the edges of MoS ₂ nanosheets, specifically the metal Mo-terminated (10– 10) edges, show considerably greater catalytic task than the inert basal aircraft, motivating the design of nanostructured drivers with optimized side exposure.
( Molybdenum Disulfide)
These defect-engineered systems exhibit just how atomic-level control can change a naturally happening mineral right into a high-performance useful product.
2. Synthesis and Nanofabrication Techniques
2.1 Bulk and Thin-Film Manufacturing Techniques
Natural molybdenite, the mineral kind of MoS ₂, has actually been utilized for decades as a strong lubricant, yet modern-day applications demand high-purity, structurally controlled artificial forms.
Chemical vapor deposition (CVD) is the leading approach for generating large-area, high-crystallinity monolayer and few-layer MoS ₂ films on substratums such as SiO ₂/ Si, sapphire, or adaptable polymers.
In CVD, molybdenum and sulfur forerunners (e.g., MoO five and S powder) are evaporated at heats (700– 1000 ° C )controlled environments, enabling layer-by-layer growth with tunable domain size and alignment.
Mechanical peeling (“scotch tape approach”) remains a benchmark for research-grade samples, yielding ultra-clean monolayers with minimal flaws, though it lacks scalability.
Liquid-phase exfoliation, entailing sonication or shear blending of bulk crystals in solvents or surfactant options, produces colloidal diffusions of few-layer nanosheets suitable for coverings, composites, and ink formulations.
2.2 Heterostructure Combination and Device Patterning
Real potential of MoS two emerges when incorporated into upright or side heterostructures with various other 2D products such as graphene, hexagonal boron nitride (h-BN), or WSe ₂.
These van der Waals heterostructures make it possible for the design of atomically accurate tools, consisting of tunneling transistors, photodetectors, and light-emitting diodes (LEDs), where interlayer fee and power transfer can be crafted.
Lithographic pattern and etching strategies enable the construction of nanoribbons, quantum dots, and field-effect transistors (FETs) with network lengths to 10s of nanometers.
Dielectric encapsulation with h-BN secures MoS ₂ from ecological degradation and decreases charge scattering, considerably enhancing carrier wheelchair and tool security.
These construction advances are crucial for transitioning MoS ₂ from lab inquisitiveness to viable part in next-generation nanoelectronics.
3. Practical Features and Physical Mechanisms
3.1 Tribological Actions and Solid Lubrication
Among the oldest and most long-lasting applications of MoS two is as a dry strong lube in severe settings where liquid oils stop working– such as vacuum cleaner, high temperatures, or cryogenic problems.
The reduced interlayer shear stamina of the van der Waals gap enables easy sliding in between S– Mo– S layers, resulting in a coefficient of friction as reduced as 0.03– 0.06 under optimum conditions.
Its efficiency is further improved by solid attachment to metal surface areas and resistance to oxidation up to ~ 350 ° C in air, beyond which MoO six development boosts wear.
MoS two is commonly used in aerospace devices, vacuum pumps, and gun elements, frequently applied as a finishing through burnishing, sputtering, or composite consolidation into polymer matrices.
Current studies reveal that moisture can break down lubricity by increasing interlayer attachment, triggering study right into hydrophobic layers or crossbreed lubricants for better environmental security.
3.2 Electronic and Optoelectronic Action
As a direct-gap semiconductor in monolayer kind, MoS ₂ exhibits solid light-matter communication, with absorption coefficients going beyond 10 five centimeters ⁻¹ and high quantum return in photoluminescence.
This makes it optimal for ultrathin photodetectors with quick reaction times and broadband level of sensitivity, from noticeable to near-infrared wavelengths.
Field-effect transistors based on monolayer MoS two demonstrate on/off proportions > 10 ⁸ and service provider movements up to 500 centimeters ²/ V · s in suspended examples, though substrate interactions generally restrict useful worths to 1– 20 centimeters ²/ V · s.
Spin-valley combining, an effect of strong spin-orbit interaction and damaged inversion balance, enables valleytronics– a novel paradigm for information encoding using the valley degree of liberty in energy space.
These quantum phenomena placement MoS ₂ as a prospect for low-power logic, memory, and quantum computer elements.
4. Applications in Power, Catalysis, and Arising Technologies
4.1 Electrocatalysis for Hydrogen Development Reaction (HER)
MoS two has become an appealing non-precious alternative to platinum in the hydrogen evolution reaction (HER), a vital procedure in water electrolysis for eco-friendly hydrogen production.
While the basal airplane is catalytically inert, side sites and sulfur openings show near-optimal hydrogen adsorption cost-free power (ΔG_H * ≈ 0), equivalent to Pt.
Nanostructuring approaches– such as producing vertically aligned nanosheets, defect-rich films, or drugged hybrids with Ni or Co– make best use of active website thickness and electrical conductivity.
When incorporated right into electrodes with conductive sustains like carbon nanotubes or graphene, MoS ₂ attains high present thickness and long-term security under acidic or neutral problems.
Additional enhancement is attained by maintaining the metal 1T stage, which improves inherent conductivity and reveals added energetic sites.
4.2 Versatile Electronic Devices, Sensors, and Quantum Devices
The mechanical flexibility, openness, and high surface-to-volume proportion of MoS two make it excellent for adaptable and wearable electronics.
Transistors, logic circuits, and memory devices have been shown on plastic substrates, enabling bendable displays, wellness monitors, and IoT sensing units.
MoS ₂-based gas sensors show high level of sensitivity to NO ₂, NH TWO, and H TWO O due to charge transfer upon molecular adsorption, with reaction times in the sub-second range.
In quantum modern technologies, MoS ₂ hosts localized excitons and trions at cryogenic temperatures, and strain-induced pseudomagnetic fields can catch providers, enabling single-photon emitters and quantum dots.
These growths highlight MoS ₂ not only as a useful material yet as a platform for checking out essential physics in minimized dimensions.
In summary, molybdenum disulfide exemplifies the convergence of classical materials scientific research and quantum engineering.
From its ancient role as a lubricating substance to its contemporary implementation in atomically slim electronic devices and energy systems, MoS two continues to redefine the boundaries of what is feasible in nanoscale products layout.
As synthesis, characterization, and combination methods advancement, its influence throughout science and modern technology is positioned to broaden even additionally.
