1. Chemical and Structural Basics of Boron Carbide
1.1 Crystallography and Stoichiometric Irregularity

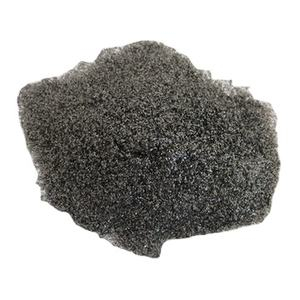

(Boron Carbide Podwer)
Boron carbide (B FOUR C) is a non-metallic ceramic substance renowned for its phenomenal firmness, thermal security, and neutron absorption capacity, positioning it among the hardest well-known products– gone beyond only by cubic boron nitride and diamond.
Its crystal structure is based on a rhombohedral latticework composed of 12-atom icosahedra (primarily B ₁₂ or B ₁₁ C) interconnected by linear C-B-C or C-B-B chains, forming a three-dimensional covalent network that conveys amazing mechanical strength.
Unlike many porcelains with taken care of stoichiometry, boron carbide shows a variety of compositional versatility, normally ranging from B FOUR C to B ₁₀. THREE C, because of the substitution of carbon atoms within the icosahedra and structural chains.
This variability influences essential homes such as firmness, electric conductivity, and thermal neutron capture cross-section, allowing for building adjusting based on synthesis conditions and designated application.
The visibility of innate issues and disorder in the atomic arrangement additionally contributes to its one-of-a-kind mechanical habits, consisting of a sensation known as “amorphization under stress and anxiety” at high pressures, which can limit efficiency in severe impact scenarios.
1.2 Synthesis and Powder Morphology Control
Boron carbide powder is primarily created via high-temperature carbothermal reduction of boron oxide (B TWO O FOUR) with carbon sources such as petroleum coke or graphite in electrical arc heaters at temperature levels in between 1800 ° C and 2300 ° C.
The reaction proceeds as: B ₂ O ₃ + 7C → 2B ₄ C + 6CO, producing crude crystalline powder that calls for subsequent milling and filtration to accomplish fine, submicron or nanoscale particles appropriate for innovative applications.
Different methods such as laser-assisted chemical vapor deposition (CVD), sol-gel handling, and mechanochemical synthesis offer paths to higher pureness and regulated fragment dimension circulation, though they are typically restricted by scalability and expense.
Powder qualities– consisting of bit dimension, shape, cluster state, and surface area chemistry– are crucial criteria that affect sinterability, packaging thickness, and final component performance.
For example, nanoscale boron carbide powders exhibit boosted sintering kinetics because of high surface area energy, allowing densification at reduced temperature levels, yet are susceptible to oxidation and require protective atmospheres during handling and processing.
Surface area functionalization and coating with carbon or silicon-based layers are increasingly utilized to enhance dispersibility and inhibit grain growth during debt consolidation.

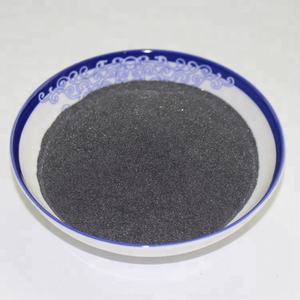

( Boron Carbide Podwer)
2. Mechanical Characteristics and Ballistic Performance Mechanisms
2.1 Hardness, Fracture Strength, and Wear Resistance
Boron carbide powder is the precursor to among the most efficient lightweight shield products available, owing to its Vickers solidity of around 30– 35 Grade point average, which enables it to wear down and blunt incoming projectiles such as bullets and shrapnel.
When sintered right into thick ceramic floor tiles or incorporated into composite shield systems, boron carbide surpasses steel and alumina on a weight-for-weight basis, making it excellent for employees security, vehicle shield, and aerospace protecting.
Nevertheless, in spite of its high firmness, boron carbide has fairly reduced crack durability (2.5– 3.5 MPa · m 1ST / TWO), providing it prone to fracturing under localized influence or duplicated loading.
This brittleness is intensified at high stress prices, where vibrant failing devices such as shear banding and stress-induced amorphization can lead to tragic loss of structural honesty.
Continuous research concentrates on microstructural engineering– such as introducing second phases (e.g., silicon carbide or carbon nanotubes), producing functionally graded composites, or making ordered styles– to mitigate these limitations.
2.2 Ballistic Energy Dissipation and Multi-Hit Capability
In individual and car armor systems, boron carbide floor tiles are commonly backed by fiber-reinforced polymer compounds (e.g., Kevlar or UHMWPE) that take in residual kinetic energy and include fragmentation.
Upon effect, the ceramic layer cracks in a controlled manner, dissipating energy through mechanisms including particle fragmentation, intergranular fracturing, and phase makeover.
The fine grain framework stemmed from high-purity, nanoscale boron carbide powder improves these power absorption procedures by increasing the thickness of grain boundaries that hamper split breeding.
Recent advancements in powder handling have resulted in the advancement of boron carbide-based ceramic-metal compounds (cermets) and nano-laminated frameworks that improve multi-hit resistance– an essential demand for military and police applications.
These crafted materials preserve protective performance even after preliminary effect, dealing with a key constraint of monolithic ceramic armor.
3. Neutron Absorption and Nuclear Engineering Applications
3.1 Communication with Thermal and Fast Neutrons
Past mechanical applications, boron carbide powder plays an important role in nuclear modern technology because of the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons).
When incorporated into control rods, securing materials, or neutron detectors, boron carbide successfully controls fission reactions by recording neutrons and going through the ¹⁰ B( n, α) seven Li nuclear reaction, generating alpha fragments and lithium ions that are easily contained.
This building makes it vital in pressurized water reactors (PWRs), boiling water activators (BWRs), and research study activators, where specific neutron change control is important for safe operation.
The powder is often fabricated right into pellets, coverings, or distributed within metal or ceramic matrices to develop composite absorbers with customized thermal and mechanical buildings.
3.2 Security Under Irradiation and Long-Term Efficiency
A vital benefit of boron carbide in nuclear environments is its high thermal security and radiation resistance approximately temperature levels exceeding 1000 ° C.
However, prolonged neutron irradiation can lead to helium gas build-up from the (n, α) response, causing swelling, microcracking, and destruction of mechanical stability– a phenomenon called “helium embrittlement.”
To mitigate this, researchers are creating drugged boron carbide formulations (e.g., with silicon or titanium) and composite layouts that fit gas launch and keep dimensional security over extensive service life.
Furthermore, isotopic enrichment of ¹⁰ B boosts neutron capture performance while minimizing the complete material quantity needed, improving activator layout flexibility.
4. Arising and Advanced Technological Integrations
4.1 Additive Production and Functionally Rated Parts
Recent progress in ceramic additive manufacturing has made it possible for the 3D printing of complex boron carbide parts utilizing methods such as binder jetting and stereolithography.
In these processes, fine boron carbide powder is precisely bound layer by layer, adhered to by debinding and high-temperature sintering to achieve near-full thickness.
This capacity permits the manufacture of personalized neutron shielding geometries, impact-resistant lattice structures, and multi-material systems where boron carbide is incorporated with steels or polymers in functionally graded styles.
Such styles optimize efficiency by integrating hardness, toughness, and weight efficiency in a solitary element, opening brand-new frontiers in defense, aerospace, and nuclear engineering.
4.2 High-Temperature and Wear-Resistant Industrial Applications
Past defense and nuclear sectors, boron carbide powder is utilized in rough waterjet reducing nozzles, sandblasting linings, and wear-resistant coatings as a result of its severe firmness and chemical inertness.
It outperforms tungsten carbide and alumina in erosive settings, especially when revealed to silica sand or other tough particulates.
In metallurgy, it serves as a wear-resistant liner for receptacles, chutes, and pumps managing unpleasant slurries.
Its low density (~ 2.52 g/cm FIVE) additional boosts its appeal in mobile and weight-sensitive commercial equipment.
As powder high quality boosts and handling technologies advance, boron carbide is poised to broaden right into next-generation applications consisting of thermoelectric products, semiconductor neutron detectors, and space-based radiation protecting.
Finally, boron carbide powder stands for a foundation material in extreme-environment design, combining ultra-high firmness, neutron absorption, and thermal resilience in a single, functional ceramic system.
Its function in safeguarding lives, allowing atomic energy, and progressing industrial performance highlights its calculated value in modern technology.
With continued advancement in powder synthesis, microstructural layout, and manufacturing integration, boron carbide will certainly stay at the leading edge of advanced materials growth for decades ahead.
