1. The Product Structure and Crystallographic Identification of Alumina Ceramics
1.1 Atomic Style and Stage Stability

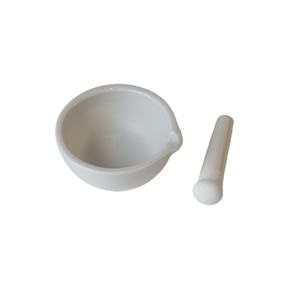

(Alumina Ceramics)
Alumina porcelains, mainly composed of aluminum oxide (Al ₂ O THREE), represent one of the most extensively used courses of innovative ceramics because of their outstanding equilibrium of mechanical strength, thermal strength, and chemical inertness.
At the atomic degree, the performance of alumina is rooted in its crystalline framework, with the thermodynamically steady alpha stage (α-Al ₂ O FOUR) being the dominant type utilized in design applications.
This phase adopts a rhombohedral crystal system within the hexagonal close-packed (HCP) lattice, where oxygen anions develop a thick arrangement and light weight aluminum cations occupy two-thirds of the octahedral interstitial sites.
The resulting framework is highly stable, adding to alumina’s high melting point of approximately 2072 ° C and its resistance to disintegration under severe thermal and chemical problems.
While transitional alumina stages such as gamma (γ), delta (δ), and theta (θ) exist at lower temperatures and show higher area, they are metastable and irreversibly change into the alpha phase upon heating over 1100 ° C, making α-Al ₂ O ₃ the special stage for high-performance structural and functional parts.
1.2 Compositional Grading and Microstructural Design
The properties of alumina ceramics are not repaired but can be customized with regulated variants in purity, grain dimension, and the addition of sintering help.
High-purity alumina (≥ 99.5% Al ₂ O FIVE) is used in applications demanding optimum mechanical stamina, electrical insulation, and resistance to ion diffusion, such as in semiconductor processing and high-voltage insulators.
Lower-purity qualities (ranging from 85% to 99% Al ₂ O SIX) typically incorporate second phases like mullite (3Al two O THREE · 2SiO TWO) or glazed silicates, which boost sinterability and thermal shock resistance at the expenditure of hardness and dielectric efficiency.
A vital consider efficiency optimization is grain dimension control; fine-grained microstructures, attained via the enhancement of magnesium oxide (MgO) as a grain development inhibitor, significantly improve crack strength and flexural toughness by restricting split breeding.
Porosity, even at low degrees, has a harmful impact on mechanical stability, and totally dense alumina porcelains are generally generated by means of pressure-assisted sintering strategies such as hot pressing or hot isostatic pushing (HIP).
The interaction in between structure, microstructure, and handling specifies the useful envelope within which alumina ceramics operate, allowing their use across a vast spectrum of industrial and technical domains.
( Alumina Ceramics)
2. Mechanical and Thermal Performance in Demanding Environments
2.1 Strength, Hardness, and Use Resistance
Alumina porcelains display an one-of-a-kind mix of high hardness and moderate crack sturdiness, making them optimal for applications involving unpleasant wear, disintegration, and effect.
With a Vickers hardness normally ranging from 15 to 20 Grade point average, alumina ranks among the hardest engineering materials, surpassed just by diamond, cubic boron nitride, and specific carbides.
This extreme hardness equates into outstanding resistance to damaging, grinding, and bit impingement, which is exploited in parts such as sandblasting nozzles, cutting tools, pump seals, and wear-resistant liners.
Flexural stamina worths for thick alumina variety from 300 to 500 MPa, depending on purity and microstructure, while compressive strength can go beyond 2 GPa, allowing alumina components to stand up to high mechanical lots without deformation.
Regardless of its brittleness– a common characteristic among ceramics– alumina’s efficiency can be enhanced via geometric style, stress-relief features, and composite support techniques, such as the incorporation of zirconia fragments to generate improvement toughening.
2.2 Thermal Behavior and Dimensional Stability
The thermal properties of alumina porcelains are main to their usage in high-temperature and thermally cycled environments.
With a thermal conductivity of 20– 30 W/m · K– higher than the majority of polymers and comparable to some metals– alumina efficiently dissipates warmth, making it ideal for warmth sinks, shielding substratums, and heating system parts.
Its reduced coefficient of thermal development (~ 8 × 10 ⁻⁶/ K) guarantees very little dimensional modification throughout heating & cooling, decreasing the risk of thermal shock cracking.
This security is especially useful in applications such as thermocouple defense tubes, spark plug insulators, and semiconductor wafer dealing with systems, where exact dimensional control is vital.
Alumina keeps its mechanical stability as much as temperature levels of 1600– 1700 ° C in air, past which creep and grain border gliding may initiate, depending on purity and microstructure.
In vacuum cleaner or inert atmospheres, its efficiency extends also better, making it a recommended material for space-based instrumentation and high-energy physics experiments.
3. Electric and Dielectric Attributes for Advanced Technologies
3.1 Insulation and High-Voltage Applications
One of the most substantial useful characteristics of alumina porcelains is their superior electric insulation capacity.
With a volume resistivity going beyond 10 ¹⁴ Ω · centimeters at area temperature level and a dielectric strength of 10– 15 kV/mm, alumina acts as a reputable insulator in high-voltage systems, including power transmission equipment, switchgear, and digital packaging.
Its dielectric constant (εᵣ ≈ 9– 10 at 1 MHz) is reasonably steady throughout a large frequency variety, making it appropriate for usage in capacitors, RF parts, and microwave substratums.
Low dielectric loss (tan δ < 0.0005) makes sure minimal power dissipation in alternating existing (A/C) applications, improving system efficiency and decreasing heat generation.
In published circuit card (PCBs) and crossbreed microelectronics, alumina substrates give mechanical assistance and electrical seclusion for conductive traces, allowing high-density circuit assimilation in extreme settings.
3.2 Efficiency in Extreme and Sensitive Atmospheres
Alumina porcelains are distinctively suited for use in vacuum cleaner, cryogenic, and radiation-intensive settings because of their low outgassing prices and resistance to ionizing radiation.
In bit accelerators and fusion activators, alumina insulators are made use of to isolate high-voltage electrodes and analysis sensing units without presenting contaminants or weakening under long term radiation exposure.
Their non-magnetic nature also makes them optimal for applications entailing solid magnetic fields, such as magnetic resonance imaging (MRI) systems and superconducting magnets.
Furthermore, alumina’s biocompatibility and chemical inertness have led to its fostering in medical devices, consisting of oral implants and orthopedic components, where lasting security and non-reactivity are vital.
4. Industrial, Technological, and Emerging Applications
4.1 Role in Industrial Equipment and Chemical Processing
Alumina porcelains are thoroughly used in commercial devices where resistance to wear, deterioration, and heats is essential.
Elements such as pump seals, shutoff seats, nozzles, and grinding media are typically made from alumina because of its capability to stand up to rough slurries, aggressive chemicals, and raised temperature levels.
In chemical processing plants, alumina cellular linings secure activators and pipelines from acid and antacid attack, extending tools life and decreasing maintenance prices.
Its inertness likewise makes it ideal for use in semiconductor fabrication, where contamination control is important; alumina chambers and wafer boats are exposed to plasma etching and high-purity gas settings without seeping pollutants.
4.2 Assimilation right into Advanced Manufacturing and Future Technologies
Beyond typical applications, alumina porcelains are playing an increasingly crucial function in arising modern technologies.
In additive production, alumina powders are used in binder jetting and stereolithography (SLA) processes to fabricate facility, high-temperature-resistant elements for aerospace and power systems.
Nanostructured alumina movies are being discovered for catalytic supports, sensors, and anti-reflective coatings because of their high surface area and tunable surface chemistry.
In addition, alumina-based compounds, such as Al ₂ O TWO-ZrO Two or Al Two O FOUR-SiC, are being created to conquer the fundamental brittleness of monolithic alumina, offering boosted toughness and thermal shock resistance for next-generation structural materials.
As sectors continue to push the borders of efficiency and dependability, alumina porcelains remain at the leading edge of product development, bridging the gap between structural effectiveness and functional flexibility.
In summary, alumina porcelains are not simply a class of refractory products however a keystone of contemporary engineering, allowing technical progress throughout power, electronic devices, health care, and commercial automation.
Their unique combination of residential properties– rooted in atomic structure and improved via advanced processing– guarantees their continued relevance in both established and arising applications.
As material science develops, alumina will most certainly remain a key enabler of high-performance systems operating beside physical and environmental extremes.
