Graphene was first found experimentally in 2004, bringing intend to the development of high-performance electronic devices. Graphene is a two-dimensional crystal made up of a solitary layer of carbon atoms organized in a honeycomb shape. It has a distinct electronic band structure and exceptional electronic residential properties. The electrons in graphene are massless Dirac fermions, which can shuttle bus at extremely rapid rates. The carrier movement of graphene can be greater than 100 times that of silicon. “Carbon-based nanoelectronics” based on graphene is expected to introduce a brand-new era of human info society.

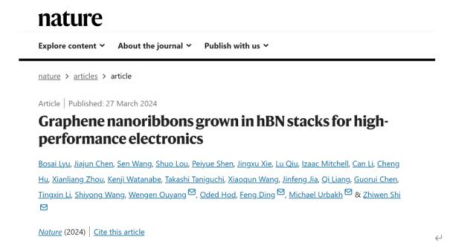

(Graphene nanoribbons grown in hBN stacks for high-performance electronics on “Nature”)

Nevertheless, two-dimensional graphene has no band space and can not be directly utilized to make transistor tools.

Academic physicists have proposed that band spaces can be presented via quantum arrest effects by reducing two-dimensional graphene into quasi-one-dimensional nanostrips. The band gap of graphene nanoribbons is inversely proportional to its size. Graphene nanoribbons with a size of much less than 5 nanometers have a band gap comparable to silicon and are suitable for producing transistors. This sort of graphene nanoribbon with both band void and ultra-high flexibility is among the excellent prospects for carbon-based nanoelectronics.

Therefore, scientific scientists have actually invested a great deal of energy in studying the prep work of graphene nanoribbons. Although a selection of methods for preparing graphene nanoribbons have been established, the trouble of preparing high-quality graphene nanoribbons that can be used in semiconductor gadgets has yet to be resolved. The carrier flexibility of the ready graphene nanoribbons is far lower than the academic worths. On the one hand, this distinction comes from the poor quality of the graphene nanoribbons themselves; on the various other hand, it originates from the condition of the atmosphere around the nanoribbons. Due to the low-dimensional residential or commercial properties of the graphene nanoribbons, all its electrons are exposed to the outside environment. Hence, the electron’s motion is very conveniently affected by the surrounding setting.

(Concept diagram of carbon-based chip based on encapsulated graphene nanoribbons)

In order to improve the performance of graphene gadgets, several approaches have actually been tried to minimize the disorder effects triggered by the setting. The most successful method to date is the hexagonal boron nitride (hBN, hereafter referred to as boron nitride) encapsulation method. Boron nitride is a wide-bandgap two-dimensional layered insulator with a honeycomb-like hexagonal lattice-like graphene. More significantly, boron nitride has an atomically level surface area and superb chemical security. If graphene is sandwiched (encapsulated) in between two layers of boron nitride crystals to form a sandwich structure, the graphene “sandwich” will be isolated from “water, oxygen, and bacteria” in the facility exterior setting, making the “sandwich” Always in the “best and best” condition. Several researches have actually shown that after graphene is encapsulated with boron nitride, numerous residential properties, including carrier flexibility, will certainly be dramatically enhanced. Nonetheless, the existing mechanical product packaging approaches can be more effective. They can currently only be made use of in the area of clinical study, making it challenging to satisfy the needs of large manufacturing in the future sophisticated microelectronics sector.

In action to the above obstacles, the team of Teacher Shi Zhiwen of Shanghai Jiao Tong University took a new approach. It developed a brand-new prep work method to attain the embedded growth of graphene nanoribbons between boron nitride layers, developing a special “in-situ encapsulation” semiconductor building. Graphene nanoribbons.

The growth of interlayer graphene nanoribbons is achieved by nanoparticle-catalyzed chemical vapor deposition (CVD). “In 2022, we reported ultra-long graphene nanoribbons with nanoribbon sizes approximately 10 microns expanded externally of boron nitride, but the size of interlayer nanoribbons has actually much surpassed this record. Currently limiting graphene nanoribbons The upper limit of the size is no more the development mechanism yet the size of the boron nitride crystal.” Dr. Lu Bosai, the initial writer of the paper, said that the size of graphene nanoribbons grown in between layers can reach the sub-millimeter degree, much exceeding what has actually been previously reported. Result.


“This kind of interlayer ingrained development is remarkable.” Shi Zhiwen stated that material growth usually entails expanding an additional externally of one base material, while the nanoribbons prepared by his study team grow directly externally of hexagonal nitride in between boron atoms.

The previously mentioned joint research group functioned closely to expose the development system and discovered that the formation of ultra-long zigzag nanoribbons between layers is the result of the super-lubricating buildings (near-zero friction loss) between boron nitride layers.

Speculative monitorings show that the development of graphene nanoribbons just takes place at the particles of the stimulant, and the placement of the catalyst remains the same throughout the process. This shows that the end of the nanoribbon applies a pushing pressure on the graphene nanoribbon, creating the whole nanoribbon to conquer the friction between it and the surrounding boron nitride and continuously slide, triggering the head end to move away from the stimulant bits slowly. As a result, the scientists hypothesize that the rubbing the graphene nanoribbons experience must be very tiny as they glide in between layers of boron nitride atoms.

Since the produced graphene nanoribbons are “encapsulated in situ” by shielding boron nitride and are secured from adsorption, oxidation, ecological contamination, and photoresist get in touch with during gadget processing, ultra-high efficiency nanoribbon electronic devices can theoretically be acquired gadget. The scientists prepared field-effect transistor (FET) tools based upon interlayer-grown nanoribbons. The measurement results revealed that graphene nanoribbon FETs all showed the electric transportation features of typical semiconductor tools. What is more noteworthy is that the device has a provider movement of 4,600 cm2V– 1s– 1, which exceeds formerly reported outcomes.

These outstanding buildings show that interlayer graphene nanoribbons are anticipated to play an essential role in future high-performance carbon-based nanoelectronic tools. The study takes an essential action towards the atomic construction of advanced packaging styles in microelectronics and is expected to impact the field of carbon-based nanoelectronics substantially.
